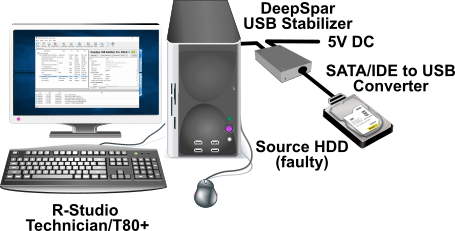

USB Stabilizer is a device that allows any Windows software to reliably work with unstable/degraded USB storage devices providing a connection between the computer and source device. The storage devices can be hard drives, SSD devices , USB memory sticks, memory cards connected through a special adapter, etc. Windows shows such device as if it was connected directly to the system providing access to it for R-Studio .

If any drive issue occurs, USB Stabilizer handles this issue drive issues preventing the system from freezes, crashes, or disconnecting the drive. Such handling may include various drive resets or even drive repower without system loosing the device.

You may learn more about USB Stabilizer on its vendor's USB Stabilizer or our sites.

Installing USB Stabilizer:

USB Stabilizer Tech/Pro

1	Connect the USB Stabilizer to your computer and power it on

There should be no device connected.

The USB STABILIZER object should appear in the Safely Remove Hardware menu when USB Stabilizer is connected..

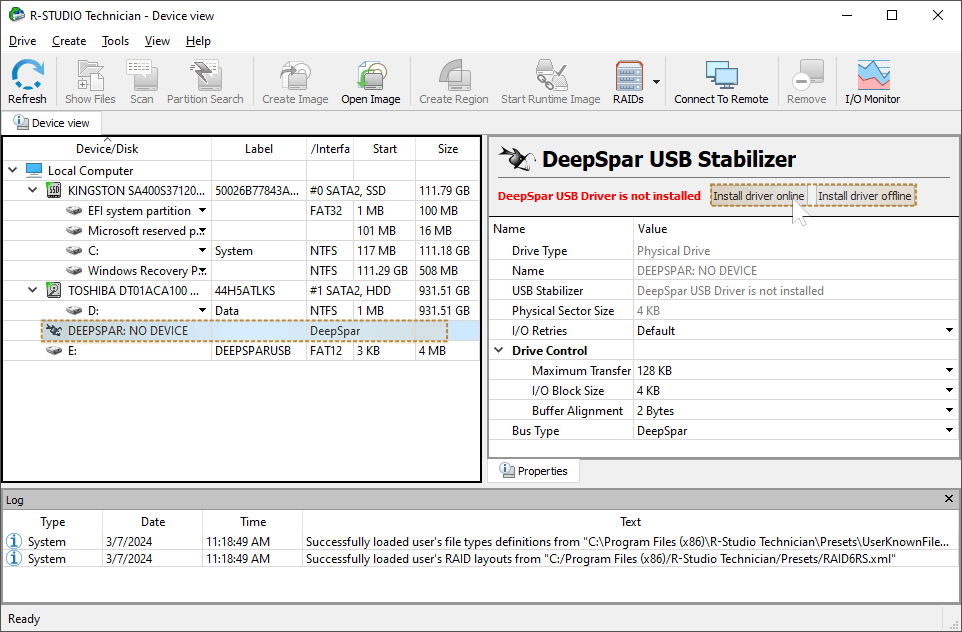

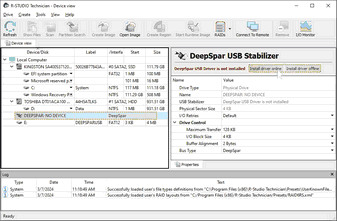

2	Run R-Studio, locate the DEEPSPAR NO DEVICE object in the Device/Disk panel, and click the Install driver button on the Properties tab.

You may install the drivers either online or offline.

There should be no device connected.

The USB STABILIZER object should appear in the Safely Remove Hardware menu

DeepSpar USB Stabilizer

R-Studio will start installing the drivers. You need to restart your system to complete installation.

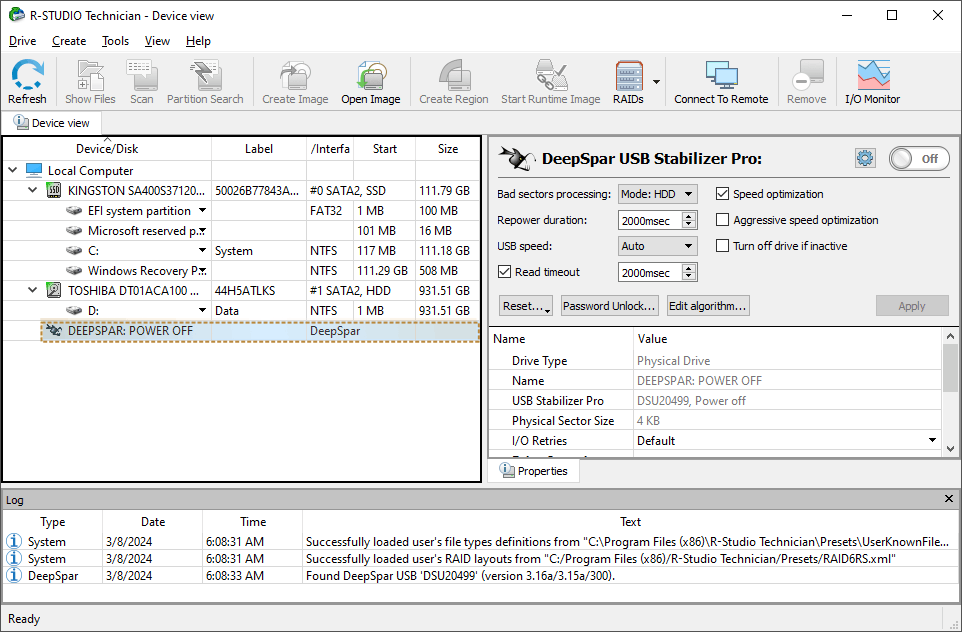

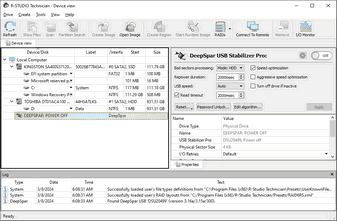

>	The DEEPSPAR: POWER OFF object will appear in the the Device/Disk panel.

DeepSpar USB Stabilizer

R-Studio is now ready for work with USB Stabilizer .

USB Stabilizer Pro

1	Connect the USB Stabilizer to your computer and power it on

There should be no device connected.

The USB STABILIZER object should appear in the Safely Remove Hardware menu when USB Stabilizer is connected..

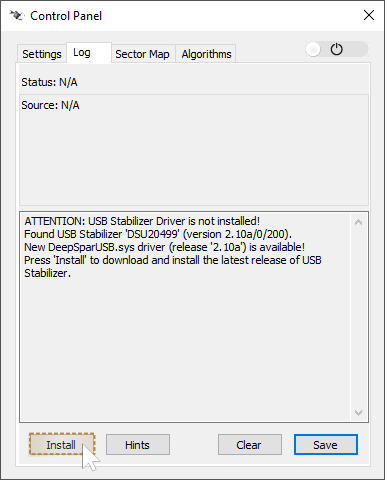

2	Run USB Stabilizer Control Panel that comes with USB Stabilizer Pro and click the Install button.

There should be no device connected.

DeepSpar USB Stabilizer Pro

Control Panel will start installing the drivers. You need to restart your system to complete installation.

>	The DEEPSPAR: POWER OFF object will appear in the the Device/Disk panel.

DeepSpar USB Stabilizer Tech

R-Studio is now ready for work with USB Stabilizer .

Working with USB Stabilizer:

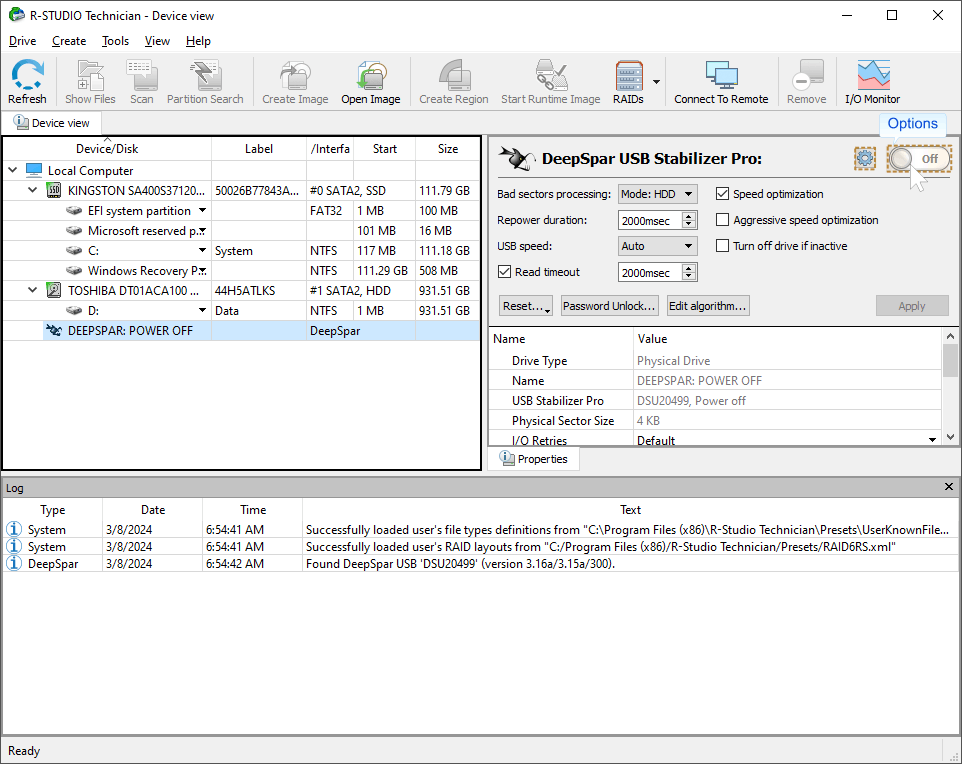

1	Connect the device for recovery to USB Stabilizer and click the Power button

DeepSpar USB Stabilizer

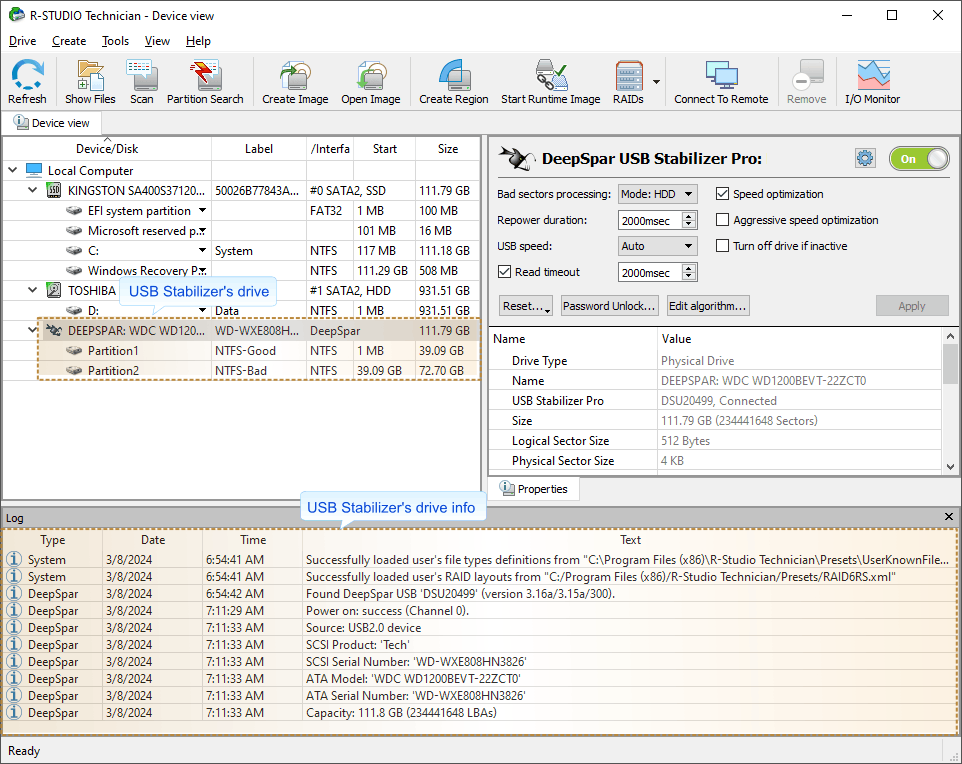

>	R-Studio will show the USB Stabilizer's drive.

DeepSpar USB Stabilizer

It may take quite a long time to turn the drive on depending on the drive conditions. R-Studio will show the DEEPSPAR: DEVICE IS BUSY line if there's not enough power for the hard drive to work. That may happen when computer's USB port cannot deliver enough power and the external power supply is disconnected.

R-Studio can now process the USB Stabilizer drive as it's a common drive connected to a USB port.

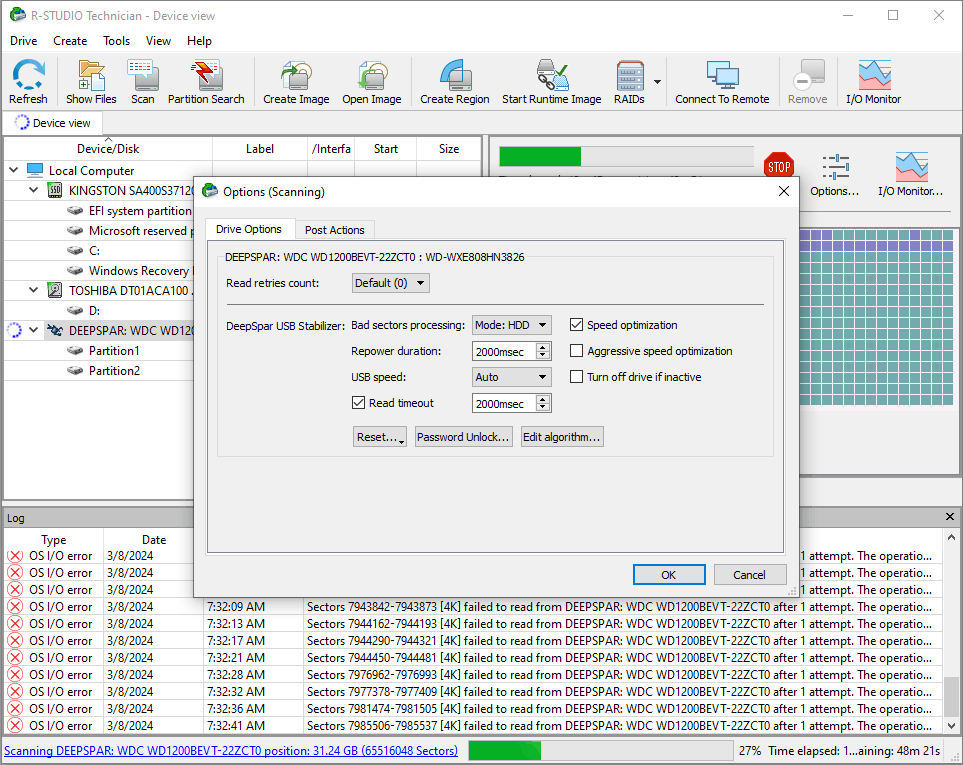

You may read about USB Stabilizer parameters in its manual.

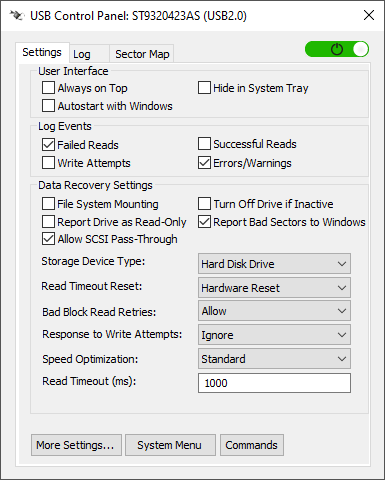

You may change other parameters for USB Stabilizer Pro through its Control Panel .

DeepSpar USB Stabilizer

Read the USB Stabilizer Pro documentation for more details.

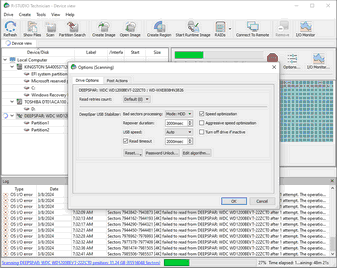

You may change these parameter during drive operations with USB Stabilizer .

DeepSpar USB Stabilizer

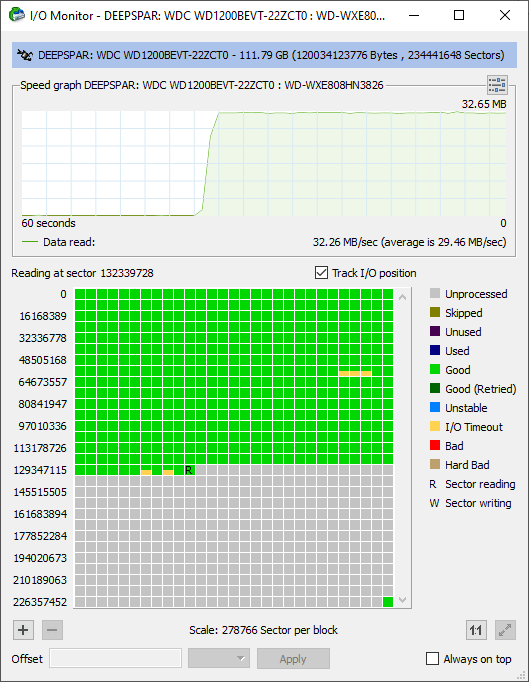

You may also watch drive read operations in real time at the I/O monitor.

DeepSpar USB Stabilizer

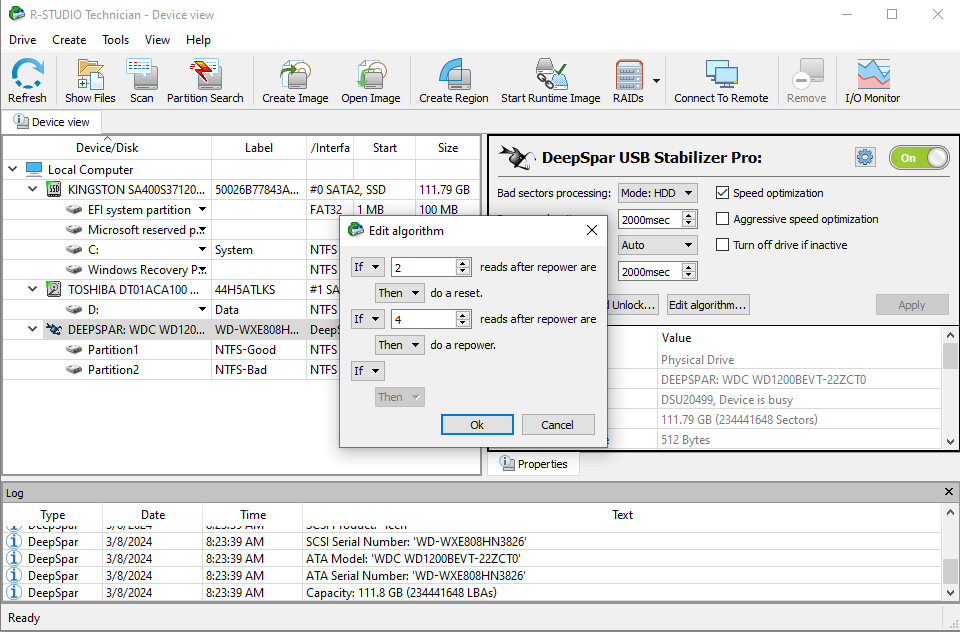

You may specify the algorithm to process faulty drives. Click the Edit algorithm button and specify algorithm's parameters.

DeepSpar USB Stabilizer
