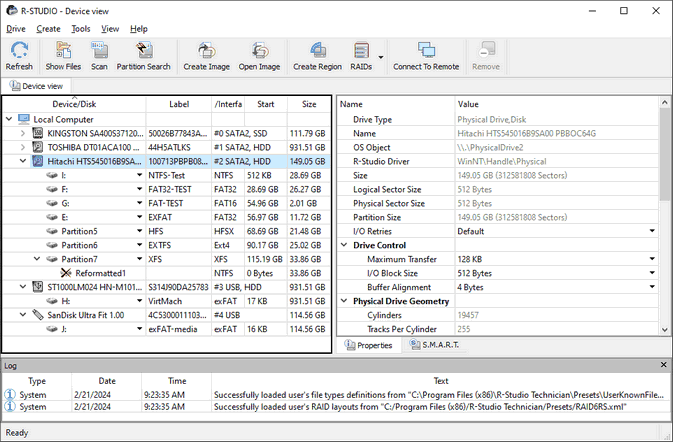

When R‑Studio starts, its main panel appears on the Windows desktop. Click the panel regions to learn their functions.
S.M.A.R.T. Info for a Drive
R‑Studio shows drive S.M.A.R.T. states using their icons. You may copy all S.M.A.R.T. attributes and paste them into a text editor.
Normal : This state indicates that the drive is in good conditions. |
|
Warning: This state indicates that some small problems with the drive are possible in the future, you may work with it but with cautions and regular check of these parameters. Drive imaging is strongly recommended. |
|
Critical: This state indicates that the drive conditions are critical and chances of hardware failure are great. The best recommendation for this case is to stop working with the drive and bring it to professional data recovery specialists. You may though continue to work with the drive at your own risk, but drive imaging is very strongly recommended. |
When a drive is selected in the R‑Studio main panel, an additional S.M.A.R.T. tab will appear. You may view the detailed S.M.A.R.T. data of the drive.
S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a technology widely-used in drives and solid-state devices that monitors their reliability conditions to predict possible hardware failures.
Changing the program language
You may select the language of R‑Studio main panel and its help. To do so, select an available language on Change Language on the Help menu.
Panel view options
You may set which panels and bars to enable/disable.
Toolbar |
Select/clear Toolbar on the View menu |
Status bar |
Select/clear Status bar on the View menu |
Drive pane |
Select/clear Device View on the View menu |
Properties pane |
Select/clear Properties View on the View menu |
Log panel |
Select/clear Event Log on the View menu |
If you have several tabs in the right pane, you may easily switch to any of the tab by selecting on the View menu |
|
Properties Tab |
to view the Properties tab |
Scan Information Tab |
to view the Scan Information Tab tab |
Parents Tab |
to view the Parents tab |
Properties |
Select data types in which the data will be represented |
Sometimes, there may be a lot of similar objects in the Drives panel. Those may be components of a RAID, for example. You may turn numerical indexes for such objects to distinguish them better. Those indexes will appear before the object names in the Drives panel.
To turn the numerical indexes on/off, go to the Device item on the View menu, and select/clear:
Show Physical Drives Indexes |
to display the indexes only for drives |
Show All Objects Indexes |
to display the indexes for all objects in the Drives panel |
You may select the units in which object's start and size are displayed
To select the units
1 | Select Devices on the View menu |
2 | Select the units in which you want to see object sizes. |
You may select
Show as Bytes |
Show as Sectors |
Show as Bytes and Sectors |
Depending on the task R‑Studio performs, its panel may vary. Those panels are described in appropriate topics. The Properties tab names and values are described in detail on the Properties tab topic.
The general settings can be set on the Settings dialog box.
You may also copy the object's information displayed in the Drives panel. Right-click the object on the necessary column and select Copy Device/disk , Copy Label , and so on.
R‑Studio has two operation modes:
File search on a partition (including recently found during drive scan ).
In this mode, R‑Studio analyzes MFT s on NTFS partitions, FAT s on FAT partitions, and SuperBlocks on Ext2/3/4FS partitions. Then it displays all files which records have been found in the analyzed tables. Then recently deleted files, which records still remain, can be recovered. If files have not been found, that means that their records have been deleted. In this case, the drive must be scanned.
File search supports file masks and regular expressions . Multiple files in different folders can be found and recovered in one recover session.
R‑Studio supports mass file recovery . There is no limit in the number of files that may be recovered during one session.
File content may be previewed before recovery.
File or drive binary data can be viewed and edited in the Text/hexadecimal editor . Also can be viewed and changed all attributes for NTFS files.
Drive scan , searching for partitions.
In this mode, R‑Studio scans the entire drive or its part. Using a number of statistic and deterministic criteria known as IntelligentScan technology, it determines existing or existed partitions on the drive, and their file systems . It is also possible to add new partitions, by setting manually all required parameters.
A drive can be scanned through several successive scans, each with its own parameters. R‑Studio accumulates the information from successive scans and keeps track of changes in the information obtained from different scans. The information obtained from the disc scan can be stored in a file. It may be loaded and processed later at any convenient time.
