R‑Studio Agent should be installed under an administrator account.
When installed, R‑Studio Agent starts automatically and runs as a service. To configure it, R‑Studio Agent should be started again manually.
-? |
evokes a help screen; |
-install |
installs R‑Studio Agent as a service |
-remove |
removes R‑Studio Agent services |
-console |
starts R‑Studio Agent as a console application |
Started without a switch, R‑Studio Agent runs as a GUI application and its icon appears on the taskbar tray. In this mode, it can be configured and its log may be viewed.
Simply connect to the remote computer providing a desired password for R‑Studio Agent in the Connect to Remote Computer dialog box. R‑Studio checks if there is R‑Studio Agent running on this computer. If not, a Can't connect... message will appear.
Click the Yes button, and R‑Studio will remotely install R‑Studio Agent .
Attention Windows users: R‑Studio Agent may be remotely installed over a network from a computer running Windows to another computer running Windows. To do so, you must have administrator accounts on both computers.

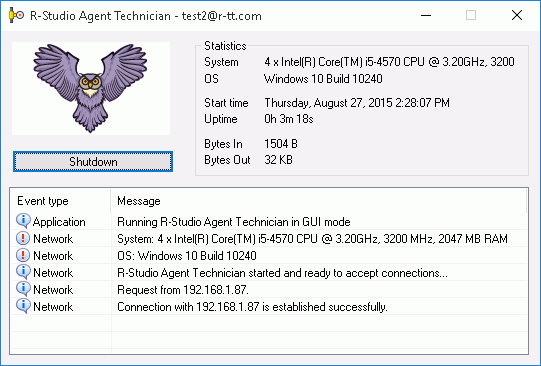

To access the R‑Studio Agent main panel,
1 | Click its tray icon |
> | The main panel will appear. You may view its log |

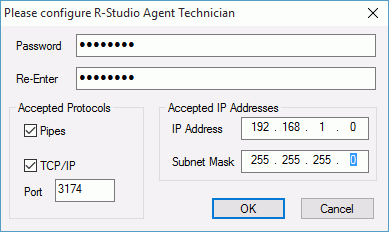

To configure R‑Studio Agent ,
1 | Right-click its tray icon and select Configure |
2 | Specify required parameters on the Please configure R‑Studio Agent dialog box and click the OK button |
Password: |
Enter a password to obtain access to this computer from a network. |
Re-Enter: |
Re-enter the password. |
Accepted Protocols |
|
Pipes |
supported by Windows. To improve security, this option should be disabled. |
TCP/IP |
supported by any network OS. |
Port |
port for incoming connections |
Accepted IP Addresses |
|
IP Address |
specifies addresses from which this computer can be accessed. |
Subnet Mask |
specifies a subnet mask of the network from which this computer can be accessed. |
> | R‑Studio Agent will now run with the specified parameters |
