When a hard drive is selected on the R-Studio main panel, an additional S.M.A.R.T. tab will appear. You may view the hardware conditions of the drive and copy all S.M.A.R.T. attributes to paste them into a text editor. .

S.M.A.R.T. (Self-Monitoring, Analysis and Reporting Technology) is a technology widely-used in hard drives and solid-state devices that monitors their reliability conditions to predict possible hardware failures.

R-Studio shows hard drive S.M.A.R.T. states using their icons.

When a hard drive is selected on the R-Studio main panel, an additional S.M.A.R.T. tab will appear. You may view the detailed S.M.A.R.T. data of the drive.

Changing the program language

You may select the language of R-Studio main panel. To do so, select an available language on Change Language on the Help menu

Panel view options

You may set which panels and bars to enable/disable.

Toolbar	Select/clear Toolbar on the View menu
Toolbar Button Text	Select/clear Toolbar Button Text on the View menu
Status bar	Select/clear Status bar on the View menu
Device pane	Select/clear Device View on the View menu
Properties pane	Select/clear Properties View on the View menu
The Log panel	Select/clear Event Log on the View menu
Search results	Select/clear Find results on the View menu
If you have several tabs in the right pane, you may easily switch to any of the tab by selecting the View menu
Properties Tab	to view the Properties tab
Scan Information Tab	to view the Scan Information Tab tab
Parents Tab	to view the Parents tab
Properties	Select data types in which the data will be represented

Sometimes, there may be a lot of similar objects on the Drives panel. Those may be components of a RAID, for example. You may turn numerical indexes for such objects to distinguish them better. Those indexes will appear before the object names on the Drives panel.

To turn the numerical indexes on/off, go to the Device item on the View menu, and select/clear:

Show Physical Drives Indexes	to display the indexes only for hard drives
Show All Objects Indexes	to display the indexes for all objects on the Drives panel

You may select the units in which object's start and size are displayed

To select the units

1	Select Devices on the View menu

2	Select the units in which you want to see object sizes.

You may select

Show as Bytes

Show as Sectors

Show as Bytes and Sectors

Depending on the task R-Studio performs, its panel may vary. Those panels are described in appropriate topics. The Properties tab names and values are described in detail on the Properties tab topic.

The general settings can be set on the Settings dialog box.

You may also copy the object's information displayed on the Drives panel. Control-click the object on the necessary column and select Copy Device/Disk , Copy Label , and so on

R-Studio has two operation modes:

File search on a partition (including recently found during disk scan ).

In this mode, R-Studio analyzes MFT s on NTFS partitions, FAT s on FAT partitions, and SuperBlocks on Ext2/3/4FS partitions. Then it displays all files which records have been found in the analyzed tables. Then recently deleted files, which records still remain, can be recovered. If files have not been found, that means that their records have been deleted. In this case, the disk must be scanned.

File search supports file masks and regular expressions . Multiple files in different folders can be found and recovered in one recover session.

R-Studio supports mass file recovery . There is no limit in the number of files that may be recovered during one session.

File content may be previewed before recovery.

File or disk binary data can be viewed and edited in the text/hexadecimal editor . Also can be viewed and changed all attributes for NTFS files.

Disk scan , searching for partitions.

In this mode, R-Studio scans the entire disk or its part. Using a number of statistic and deterministic criteria known as the IntelligentScan technology, it determines existing or existed partitions on the disk, and their file systems . It is also possible to add new partition, by setting manually all required parameters.

A disk can be scanned through several successive scans, each with its own parameters. R-Studio accumulates the information from successive scans and keeps track of changes in the information obtained from different scans. The information obtained from the disc scan can be stored in a file. It may be loaded and processed later at any convenient time.

Data Recovery Articles

PC Privacy Articles

Home > Introduction to R-Studio for Mac > R-Studio Main Panel

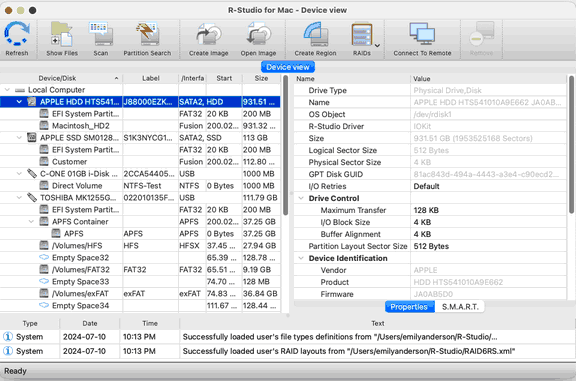

R-Studio Main Panel

Home > Introduction to R-Studio for Mac > R-Studio Main Panel

Normal : This state indicates that the hard drive is in good conditions.
Warning: This state indicates that some small problems with the disk are possible in the future, you may work with it but with cautions and regular check of these parameters. Disk imaging is strongly recommended.
Critical: This state indicates that the hard drive conditions are critical and chances of hardware failure are great. The best recommendation for this case is to stop working with the disk and bring it to professional data recovery specialists. You may though continue to work with the disk at your own risk, but disk imaging is very strongly recommended.
