R-Studio Agent for Windows


Attention Windows NT/2000/​XP/​2003/​Vista/​2008/​7/​8/8.1/​10 users: R-Studio Agent should be installed under an administrator account.

When installed, R-Studio Agent starts automatically and runs as a service. To configure it, R-Studio Agent should be started again manually.

Click to expand/collapse The following switches are available:

-?

evokes a help screen;

-install

installs R-Studio Agent as a service

-remove

removes R-Studio Agent services

-console

starts R-Studio Agent as a console application

Started without a switch, R-Studio Agent runs as a GUI application and its icon appears on the taskbar tray. In this mode, it can be configured and its log may be viewed.

Simply connect to the remote computer providing a desired password for R-Studio Agent in the Connect to Remote Computer dialog box. R-Studio checks if there is R-Studio Agent running on this computer. If not, a Can't connect... message will appear.

Click the Yes button, and R-Studio will remotely install R-Studio Agent .

Attention Windows NT/2000/​XP/​2003/​Vista/​2008/​7/​8/8.1/​10 users: R-Studio Agent may be remotely installed over a network from a computer running Windows NT/2000/​XP/​2003/​Vista/​2008/​7/​8/8.1/​10 to another computer running Windows NT/2000/​XP/​2003/​Vista/​2008/​7/​8/8.1/​10. To do so, you must have administrator accounts on both computers.

To access the R-Studio Agent main panel,

1 Click its tray icon
> The main panel will appear. You may view its log
Click to enlarge

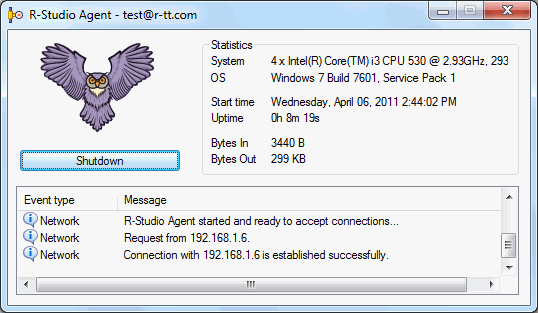

R-Studio Agent main panel

To configure R-Studio Agent ,

1 Right-click its tray icon and select Configure
2 Specify required parameters on the Please configure R-Studio Agent dialog box and click the OK button
Click to enlarge

Please configure R-Studio Agent dialog box

Click to expand/collapse R-Studio Agent Options

Password:

Enter a password to obtain access to this computer from a network.

Re-Enter:

Re-enter the password.

Accepted Protocols

Pipes

supported by Windows NT/2000/​XP/​2003/​Vista/​2008/​7/​8/8.1/​10 only. To improve security, this option should be disabled.

TCP/IP

supported by any network OS.

Port

port for incoming connections

Accepted IP Addresses

IP Address

specifies addresses from which this computer can be accessed.

Subnet Mask

specifies a subnet mask of the network from which this computer can be accessed.

> R-Studio Agent will now run with the specified parameters
