Home  > Data Recovery Using R-Studio > Advanced Data Recovery  > Exclusive Regions

Exclusive Regions


Exclusive regions are areas on any object visible on the R-Studio 's Drives panel that are excluded from disk operations. R-Studio never tries to read/write data from/to such area. Exclusive regions are necessary when, for example, there are areas with bad sectors on a hard drive, and it is necessary to avoid any disk operations with such areas to not inflict further damage to such drive and to speed work with it.

Note: R-Studio does not create anything real on the disk. Exclusive regions are virtual objects that do not affect actual data on the disk.

To create an exclusive region

1 Control-click an object on the R-Studio 's Drives panel and select Create Exclusive Region on the contextual menu , or

Select the object and select Create Exclusive Region on the Create menu

2 Specify required parameters on the Create Exclusive Region dialog box and click the Add  button
Click to enlarge

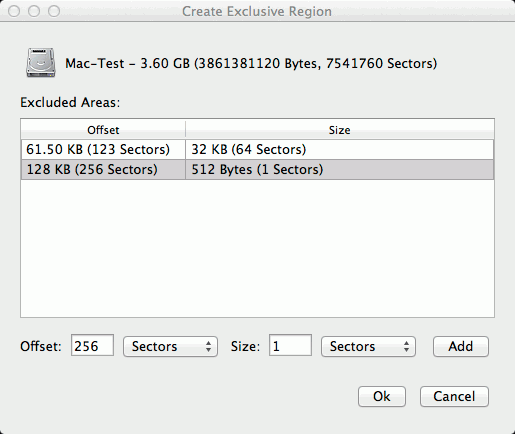

Create Exclusive Region dialog box

Click to expand/collapse Exclusive Region options

Offset:

Start point of the exclusive region

Size:

Size of the exclusive region. Cannot be larger than Disk size .

Numbers in these fields can be in bytes or sectors. See the Data Formats and Multipliers topic for more details on data formats.

> An Exclusive Region object will appear on the Drives panel.

Its properties can be seen on the Excluded Areas tab.

To delete an exclusive region

* Select an Exclusive Region on the R-Studio Drives panel and click the Delete button, or

Control-click the selected region and select Remove Region on the contextual menu.

To change the size of an exclusive region

* Control-click an Exclusive Region on the R-Studio Drives panel, select Edit on the contextual menu, and add/delete excluded areas on the Edit e Exclusive Region dialog box.

You may delete an excluded area by control-clicking it and selecting Remove on the contextual menu.
