Images


An image is an exact, byte by byte, copy of any object on the Drives panel . When created, images can be processed like their original objects.

Images are very useful if there is a risk of total data loss due to hardware malfunction. If bad blocks are constantly appearing on a hard drive, you must immediately create an image of this drive. All data search, scan and restoring can be done from this image.

While creating images, R-Studio can simultaneously perform disk scan and save scan information to lessen time necessary to process the disk.

The image can be saved on the remote computer if it is created via network . R-Studio can also load and process images created with the DeepSpar Disk Imager™ .

To create an image ,

1 Select an object on the R-Studio 's Drives panel and click the Create Image button

Click to expand/collapse Other ways to create the image

2 Specify image options, a file name, and destination for the image on the Drive Image Wizard

Note: To store an image file, you need a free space equal to at least the object size.

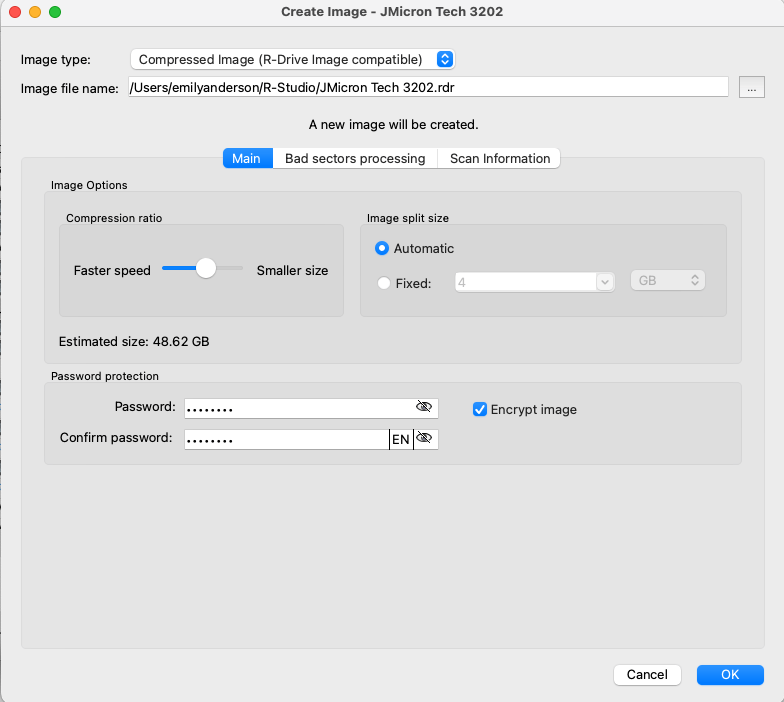

Click to enlarge

Create Image (Main)

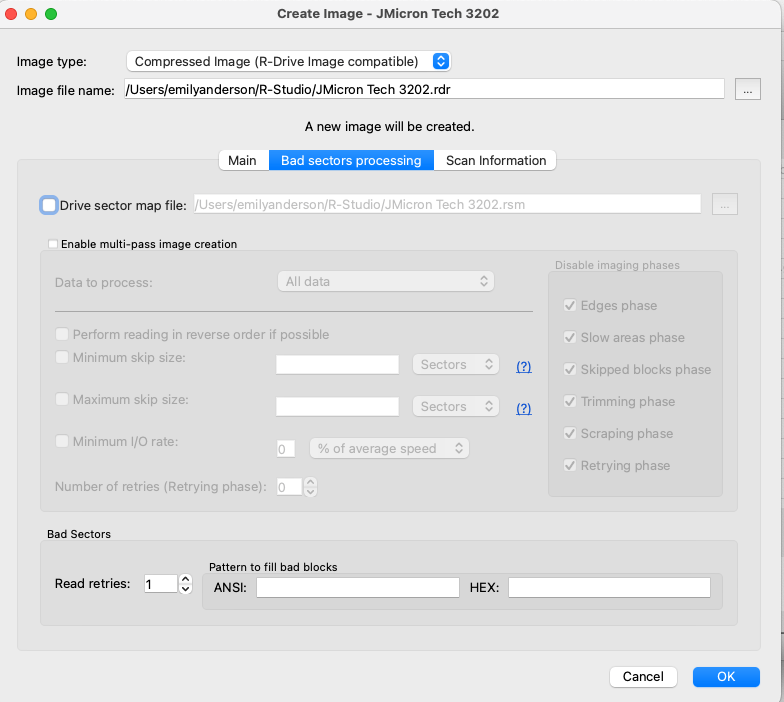

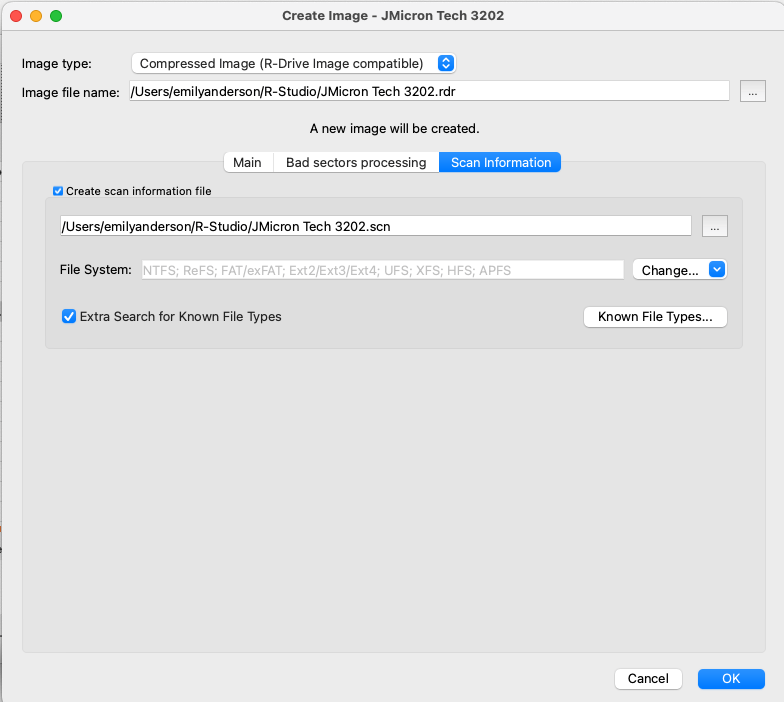

Click to enlarge

Create Image (Advanced) dialog box

Click to expand/collapse Image Options (Main)

If a remote computer is connected for Data Recovery over Network , the Save Image File dialog box will appear when you select a place to store the image. You may save it to the local or remote computer.

R-Studio Technician/T80+

Click to enlarge

Create Image dialog box

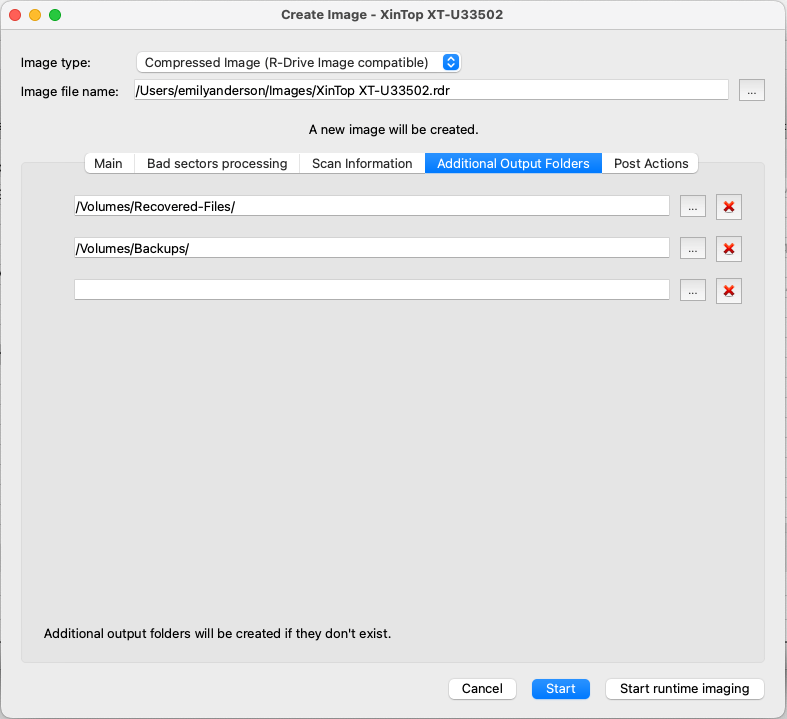

Click to expand/collapse         Additional output folders

Click to enlarge

Create Image dialog box

Click to expand/collapse         Post Actions Options

> R-Studio will start creating the image, the Progress message showing the progress.

You may change some options during the imaging process. Click the Options button and change them as necessary/

You may stop the imaging process and then resume it later on. Click the Stop button and the Cancel drive operation dialog box will appear. Select Stop if yo want to keep the partially created image or Discard if you don't need this image file.

To resume the creation of the image for the same object, select the same file name for the image. You'll be able to create a new image file or continue to create the image for the object.

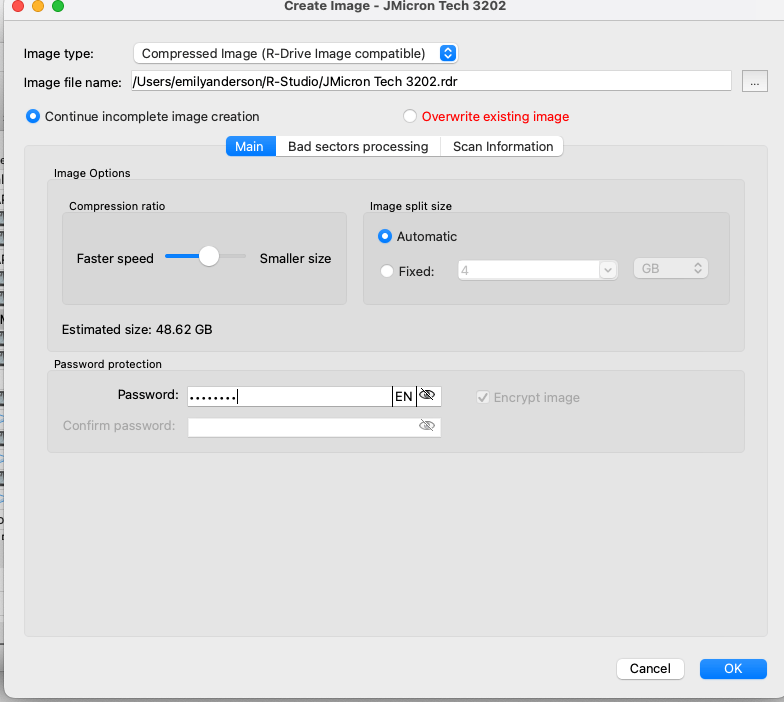

Click to enlarge

Resuming image creation

R‑Studio will create a new file for every new start of imaging for the .rdi and .vmdk file types.

To process an already created Image , the image file should be opened.

To open an image

1 Click the Open Image button , or

Select Open Image File on the Drive menu

If a remote computer is connected for Data Recovery over Network , the Open Image File dialog box will appear when you select a place to load the image file from. You may load it from the local or remote computer.

2 Select the required image file
> An Image object will appear on the Drives panel

You may perform all data search, scan, and recovery from this image as it were a regular drive/disk object.



To close an image

* Select the image and click the Close Image button,

or control-click the image and select Close Image on the contextual menu

or select the image and press the F8 key.



To close all image

* Select Close All Images on the Tools menu



A disk (or disks) containing in an image can be connected to the operating system as a device which makes its content accessible to any program including any other data recovery software.

To connect a disk in an image

1 Control-click the disk in the image on the Drives panel and select Mount on the contextual menu
> A Virtual disk object will appear on the Drives panel

and this virtual disk will be available to system in the read-only mode

To disconnect a virtual disk from the system

1 Control-click the virtual disk in the image on the Drives panel and select Unmount on the contextual menu.
