You may check RAID consistency (whether the data parity values are valid) for RAID layouts with parity blocks.
To check RAID consistency,
* | Control-click the RAID and select Check RAID consistency... on the contextual menu |

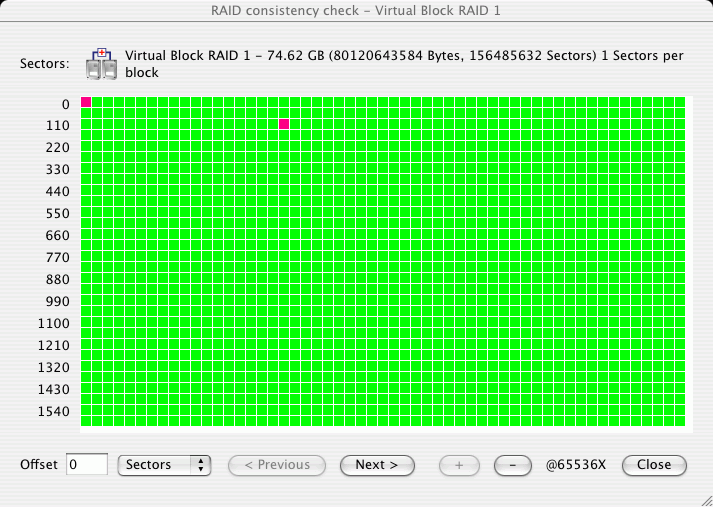

> | The RAID consistency check window will appear showing the progress. |
When the check is finished, you may inspect the results.
Block color |
|
Green |
Data parity values are valid. |
Red |
Data parity values are not valid. |
White |
0's |
When a mouse pointer hovers over a block, a tooltip will show the sector range within the block and number of consistent and inconsistent sectors. Double-clicking the block moves it to the upper-leftmost corner and zooms in the data by 2.
Sectors |
The number of the first sector in the row. |
Offset |
Offset in the data. Enter the address you want to jump to and press the Enter key. |
Sectors/Bytes/KB... |
Specifies the dimension of the data in the Offset field. |
Previous/Next |
Moves to the previous/next part of the data. |
+/- |
Zooms into/out of, the data. |
