Home  > Data Recovery Using R-Studio > Advanced Data Recovery  > Regions

Regions


Scanning large objects may take a long time. Sometimes, only smaller area of a disk needs to be scanned or searched for files. Such area is called a region . A region can be created on any object in the R-Studio 's Drives panel.

Created regions can be scanned, and files on them can be recovered in the same way as from hard drives or logical disks.

Created regions can be deleted.

Note: R-Studio does not create anything real on the disk. Regions are virtual objects that do not affect actual data on the disk.

To create a region

1 Select an object on the R-Studio 's Drives panel and click the Create Region button

Click to expand/collapse Other ways to create the region

• Control-click the selected object and select Create Region on the contextual menu

or

• Select the object and select Create Region on the Create menu

2 Specify required parameters on the Create region dialog box and click the Create button
Click to enlarge

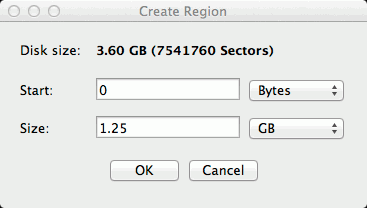

Create region dialog box

Click to expand/collapse Region options

Disk size:

Shows size of the object where the region is to be created. The region cannot be larger than this size.

Start:

Start point of the region

Size:

Size of the region. Cannot be larger than Disk size .

Numbers in these fields can be in bytes or sectors. See the Data Formats and Multipliers topic for more details on data formats.

> A Region object will appear on the Drives panel.

To change the size of a region

* Control -click the Region on the R-Studio Drives panel, select Edit on the contextual menu, and enter a new size on the Edit Region dialog box.

To convert a region into an exclusive one

* Control-click the Region on the R-Studio Drives panel and select Exclude area on the  contextual menu

To remove a region

* Select a Region on the R-Studio's Drives panel and click the Remove button , or

Control-click the selected region and select Remove Region on the contextual menu.
