You need to create either
• A startup CD/DVD disc. You may create an ISO image, or write the disc directly from R-Studio Emergency Startup Media Creator , if there is a CD/DVD recorder in your system.
or
• A startup FAT/FAT32 removable device recognized by your system as a bootable one. The total available size of the device should be more than 10 MB.
or
• 4 formatted floppy disks

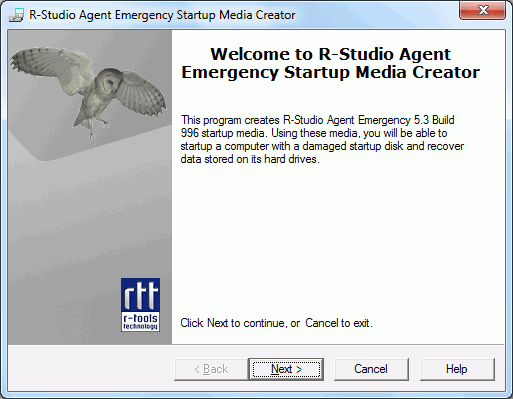

When R-Studio Agent Emergency Startup Media Creator starts, its Welcome dialog box appears:
Welcome to R-Studio Agent Emergency Startup Media Creator dialog box

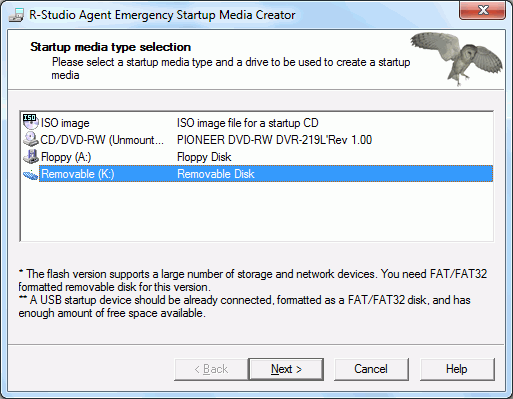

click the Next button to see the list of all devices on which startup disks may be created.
To create a startup CD/DVD disc directly on your CD/DVD writer (if present):
1 | Run R-Studio Agent Emergency |
2 | Select the CD/DVD writer on the Startup media type selection dialog box and click the Next button |

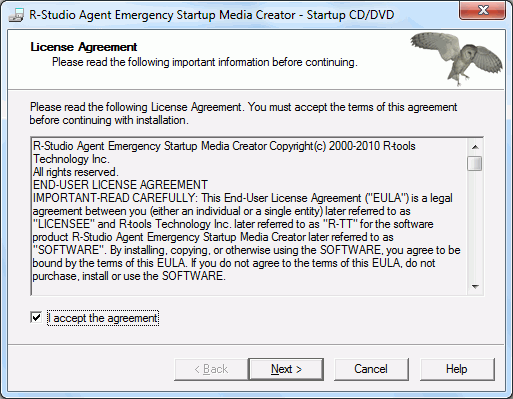

3 | Read and accept the License Agreement and enter the R-Studio Agent registration key on the R-Studio Agent Emergency Activation dialog box and click the Next button |
Note : You should enter the registration key of R-Studio Agent , not R-Studio itself.
if you do not enter the registration key, R-Studio Agent Emergency will work in the Demo mode. You may enter the key later when R-Studio Agent Emergency and R-Studio establish a connection

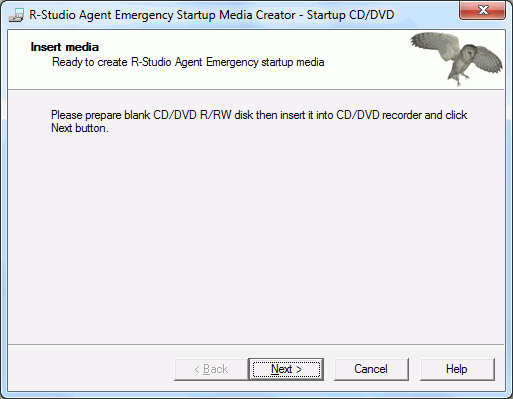

4 | Insert a blank CD/DVD disk into the CD/DVD recorder and click the Next button |

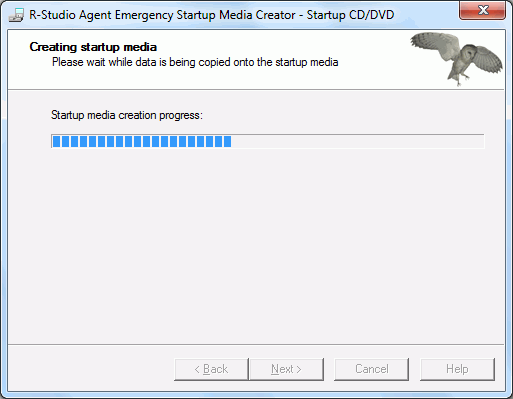

> | R-Studio Agent Emergency Startup Media Creator will start creating the startup CD/DVD disc showing the progress on the Creating startup media dialog box |

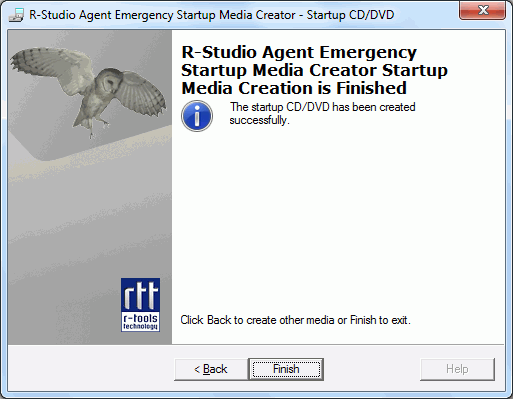

When R-Studio Agent Emergency Startup Media Creator finishes creating the startup CD/DVD disc, the R-Studio Agent Emergency Startup Media Creation is Finished message will appear
You may either exit R-Studio Emergency Startup Media Creator by clicking the Finish button or create another startup media by clicking the Back button .
To create an ISO image of a startup CD/DVD disc
1 | Run R-Studio Agent Emergency |
2 | Select ISO Image for a startup CD/DVD on the R-Studio Agent Emergency Startup Media Creator dialog box and click the Next button |
3 | Read and accept the License Agreement and enter the R-Studio Agent registration key on the R-Studio Agent Emergency Activation dialog box and click the Next button |
Note : You should enter the registration key of R-Studio Agent , not R-Studio itself.
if you do not enter the registration key, R-Studio Agent Emergency will work in the Demo mode. You may enter the key later when R-Studio Agent Emergency and R-Studio establish a connection.
4 | Select a place and file name for the ISO image of the startup CD/DVD and click the Save button |

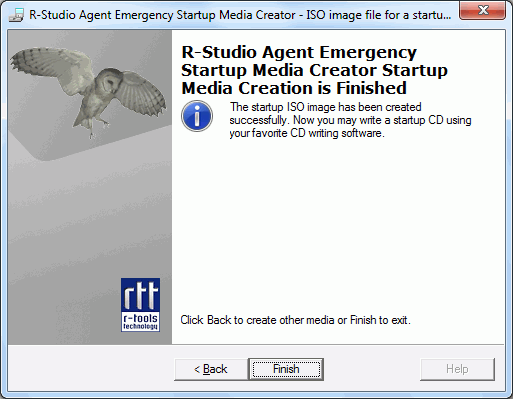

> | When R-Studio Bootable Startup Media Creator finishes writing the file with the ISO image, the R-Studio Agent Emergency Startup Media Creation is Finished message will appear |
You may either exit R-Studio Bootable Startup Media Creator by clicking the Finish button or create another startup media by clicking the Back button.
5 | Create the startup CD/DVD using your favorite CD/DVD creation software |
Load the created ISO image into the CD/DVD creation software. Consult documentation for the software for details.
To create a startup FAT/FAT32 removable device
1 | Run R-Studio Agent Emergency |
2 | Select the removable device on the Startup media type selection dialog box and click the Next button |
3 | Read and accept the License Agreement and enter the registration key on the R-Studio Agent Emergency Activation dialog box and click the Next button |

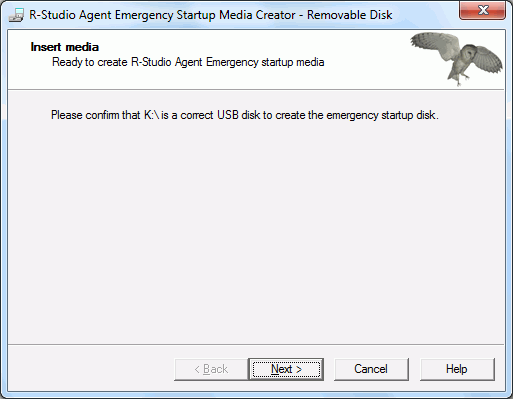

4 | Check that the correct FAT/FAT32-formatted device is selected and click the Next button |
> | R-Studio Agent Emergency Startup Media Creator will start creating the startup USB disk showing the progress on the Creating startup media dialog box |

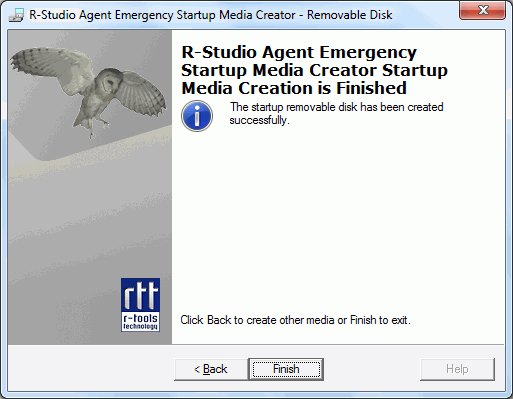

You may either exit R-Studio Emergency Startup Media Creator by clicking the Finish button or create another startup media by clicking the Back button .
To create floppy disks:
You will need 4 formatted floppy disks.
1 | Run R-Studio Agent Emergency |
2 | Select Floppy Disk for the startup floppy disk on the R-Studio Agent Emergency Startup Media Creator dialog box and click the Next button |

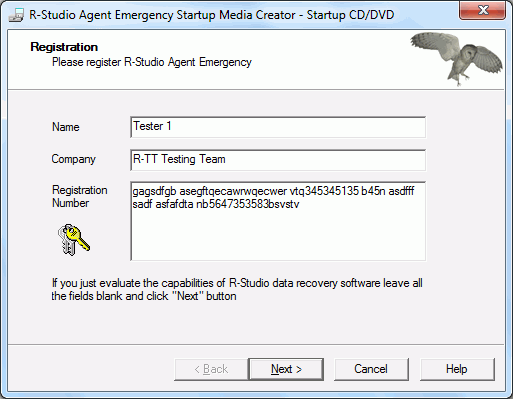

3 | Enter the registration information and number on the Registration dialog box and click the Next button |
If you leave all the field blank, R-Studio Agent Emergency will work with the Demo-version limitations

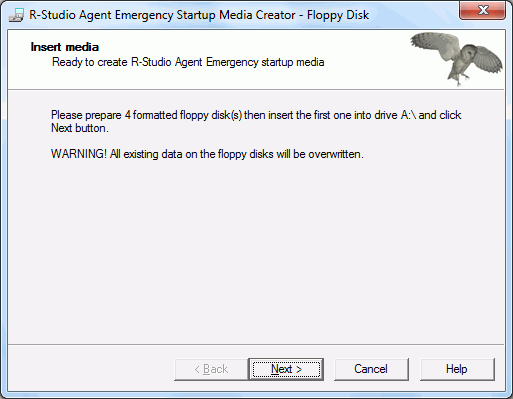

4 | Insert the floppy disk and click the Next button on the Insert floppy dialog box |

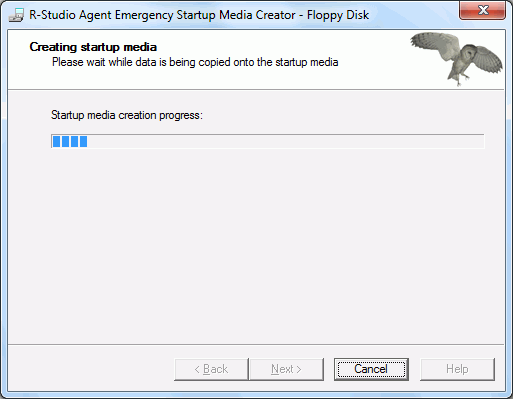

> | R-Studio Agent Emergency Startup Media Creator will start creating the startup floppy disk showing the progress on the Creating startup media dialog box |
5 | Insert the second floppy disk and click the OK button when the Please insert formatted diskette #2 into drive A: message will appear |
Do it with the next 2 floppy disks.

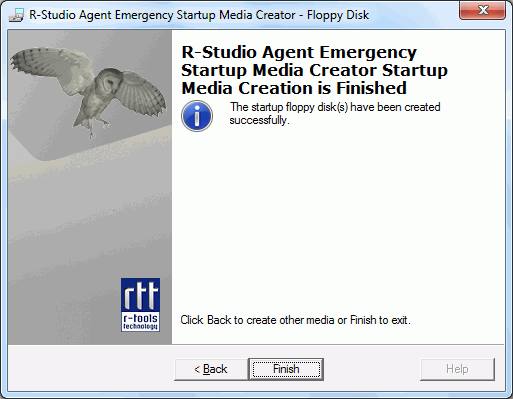

> | When R-Studio Startup Media Creator finishes creating the startup floppy disk, the R-Studio Agent Emergency Startup Media Creation is Finished message will appear. You may either exit R-Studio Startup Media Creator by clicking the Finish button or create another startup media by clicking the Back button. |
