Windows Dynamic Disks

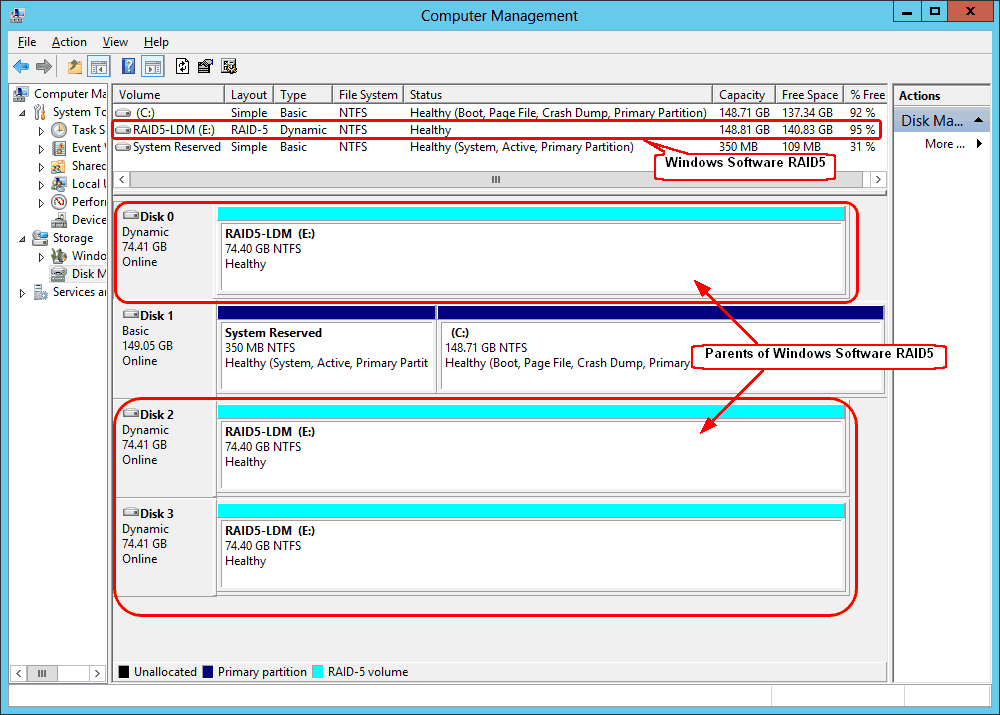

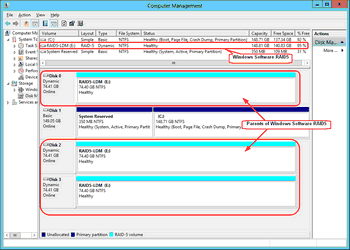

R-Studio supports dynamic disks , including Windows software RAIDs , mirrors, and spanned volumes. When R-Studio detects components from such dynamic disks, it assembles them accordingly.

Click to enlarge

Windows dynamic disks (RAID5)

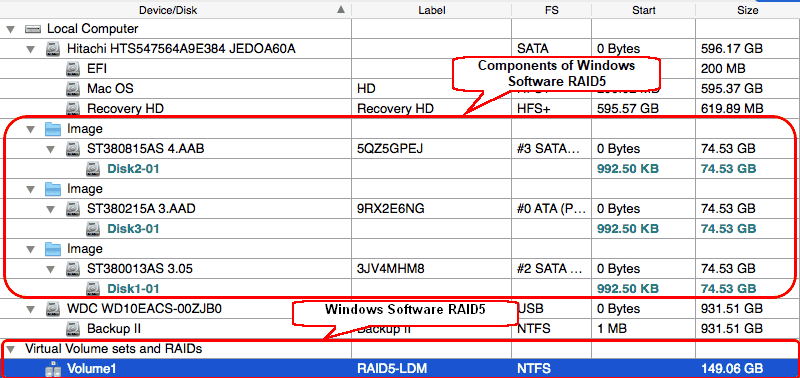

R-Studio automatically detects components form dynamic disks and creates those dynamic disks automatically. At the same time, R-Studio gives access to the parents of the dynamic disks (hard drives and images ).

Click to enlarge

Windows dynamic disks (RAID5) in R-Studio  for Mac

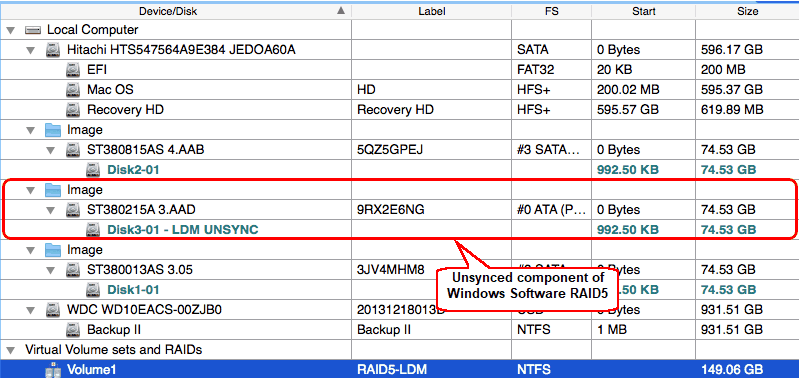

Also, R-Studio automatically detects inconsistent components of dynamic disks and marks them accordingly.

Click to enlarge

Windows dynamic disks (RAID5) with unsynced parent

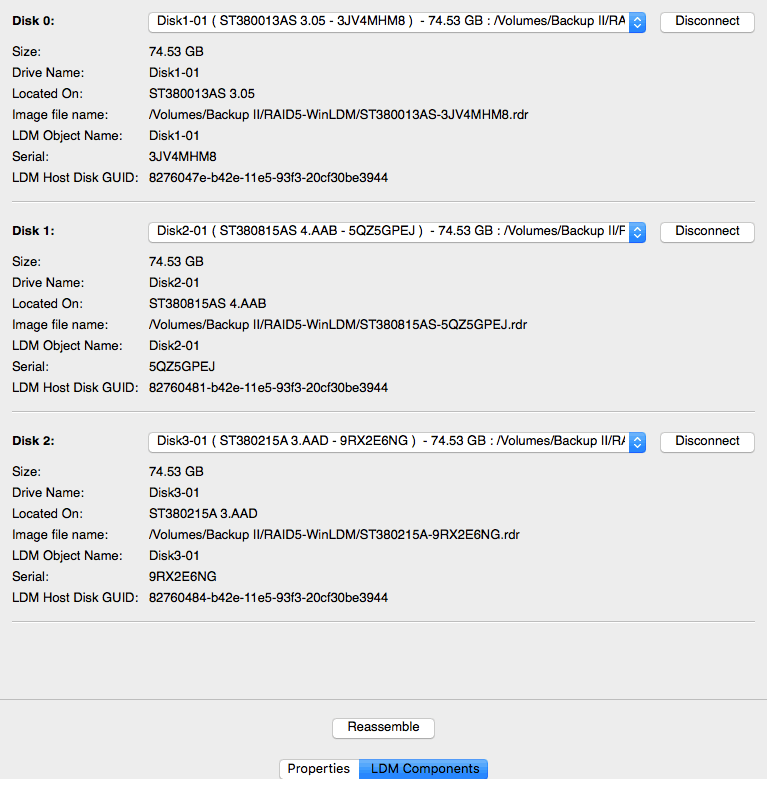

R-Studio shows the components of the selected dynamic disk on its LDM Components tab.

Click to enlarge

LDM Components tab

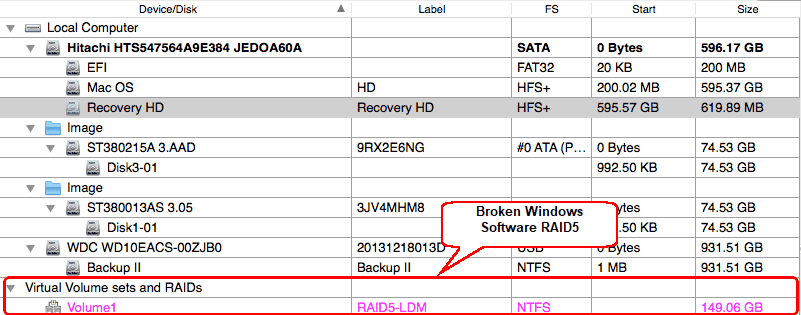

R-Studio shows broken dynamic disks in pink.

Click to enlarge

Broken dynamic disks in R-Studio

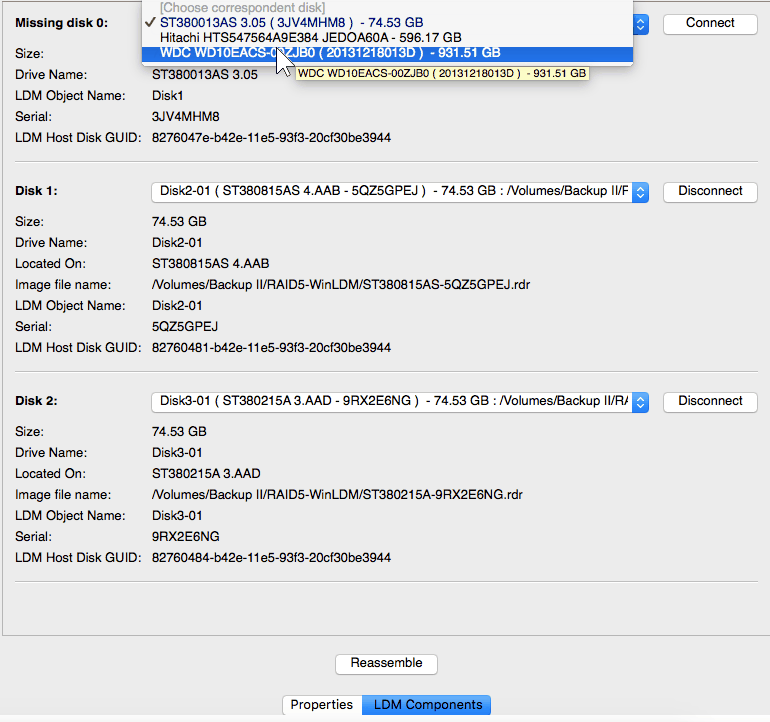

The LDM Components tab also allows you to manually disconnect or connect the components, for example, if they are such damaged that R-Studio cannot recognize them as parts of a broken dynamic disk. Select the object from the drop-down box and click the Connect button. R-Studio displays the objects it recognizes as the components of the dynamic disk in blue.

Click to enlarge

Adding a component manually

You may immediately switch to the dynamic disk configuration that R-Studio believes most probable by clicking the Reassemble button.

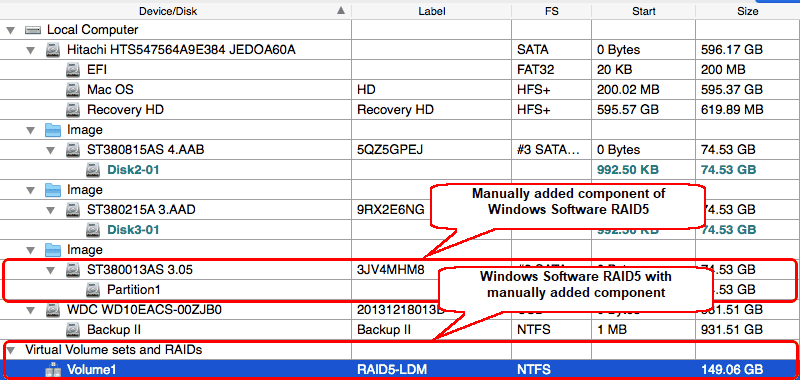

R-Studio shows dynamic disks with manually added components in blue:

Click to enlarge

Dynamic disks with added components in R-Studio
