Opening Virtual Disks from the Files Panel

R‑Studio can open supported virtual disks directly from the Files panel. Then these disks can be processed like opened images.

To open a virtual disk directly form the Files panel,

1	Select the file to mount on the Files panel and select Bind as Drive Image in the File menu

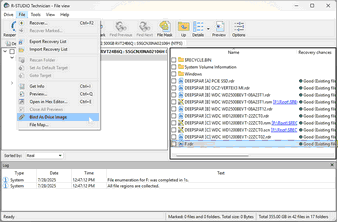

File to mount

>	Select the file to mount on the Files panel and select Bind as Drive Image in the File menu

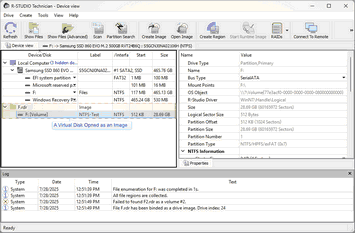

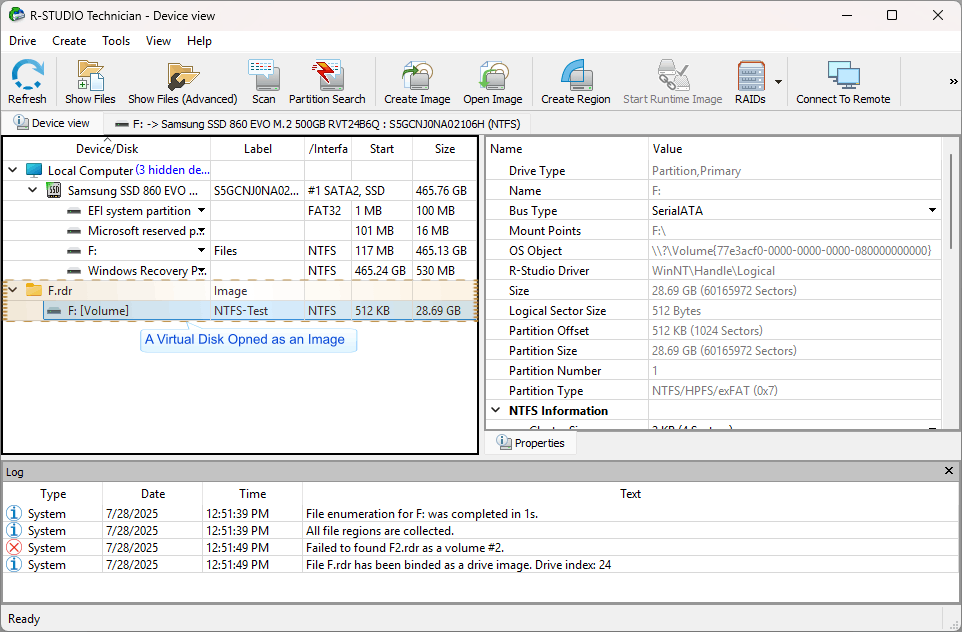

File mounted as an image

You may open it and see its files.

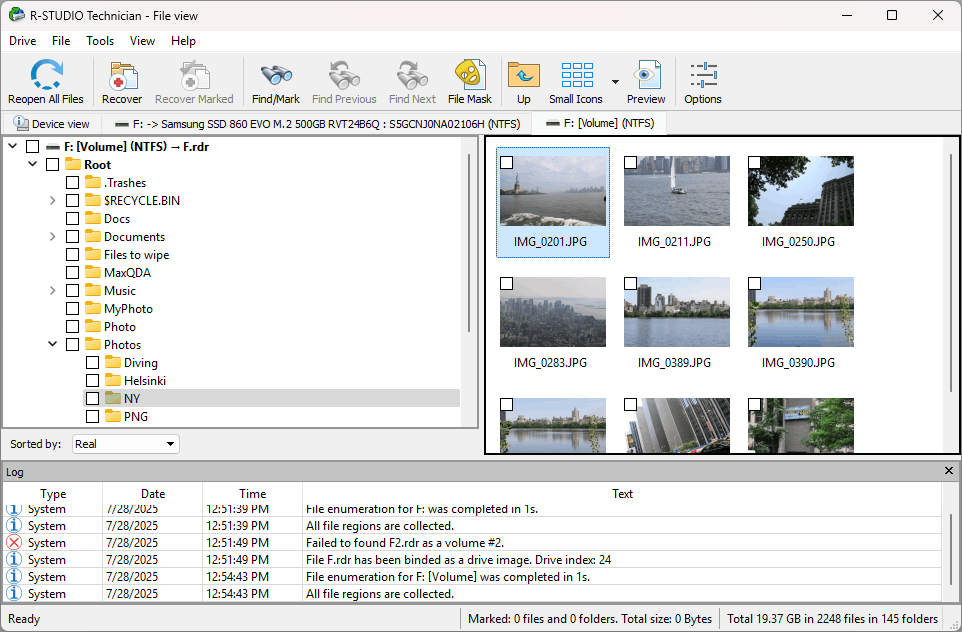

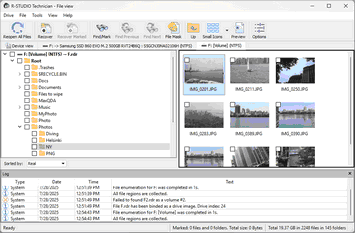

Files in the image
