Windows Dynamic Disks

Windows Dynamic Disks

Windows Dynamic Disks

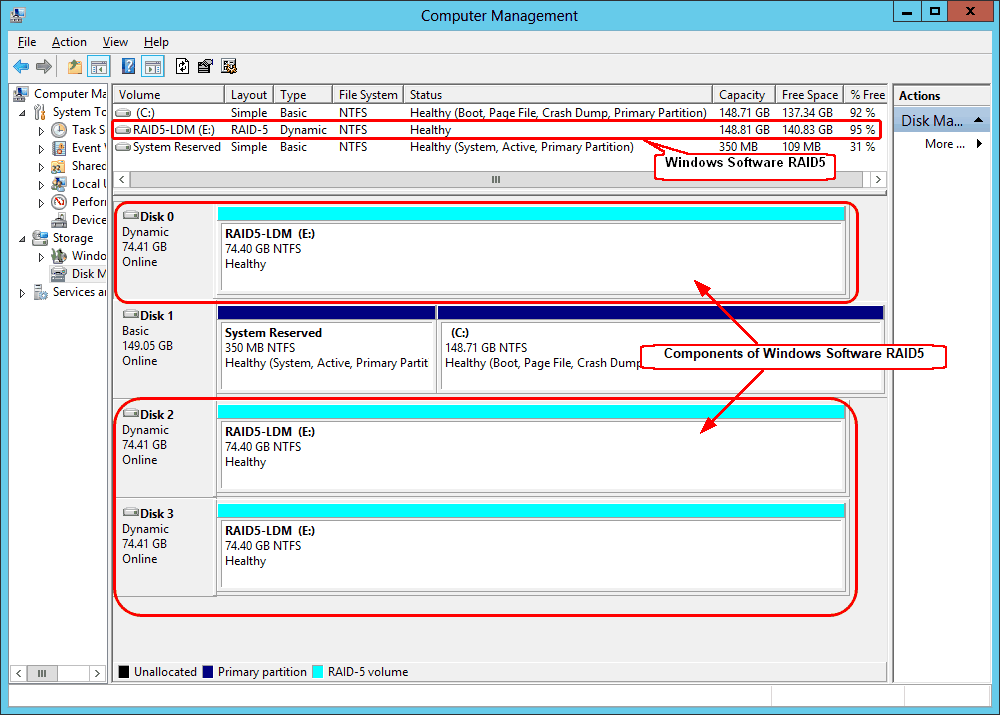

R-Studio supports dynamic disks, including Windows software RAIDs, mirrors, and spanned volumes. When R-Studio detects components from such dynamic disks, it assembles them accordingly.

Click to enlarge

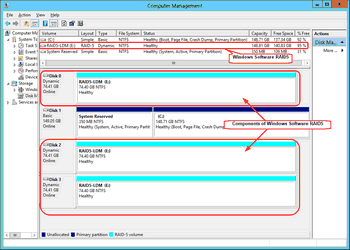

Windows dynamic disks (RAID5)

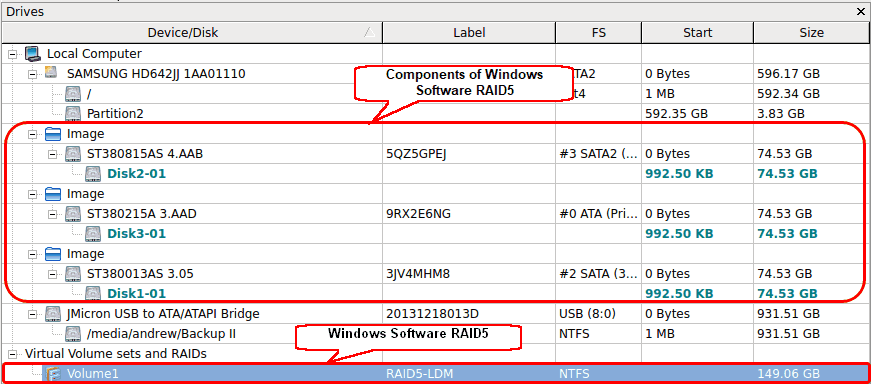

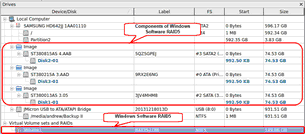

R-Studio automatically detects components form dynamic disks and creates those dynamic disks automatically. At the same time, R-Studio gives access to the parents of the dynamic disks (hard drives and images).

Click to enlarge

Windows dynamic disks (RAID5) in R-Studio  for Mac

Also, R-Studio automatically detects inconsistent components of dynamic disks and marks them accordingly.

Click to enlarge

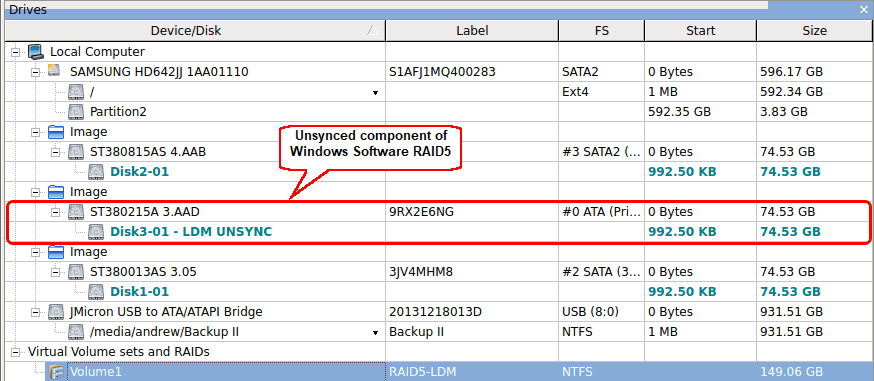

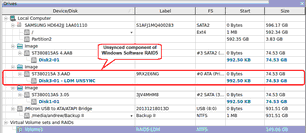

Windows dynamic disks (RAID5) with unsynced parent

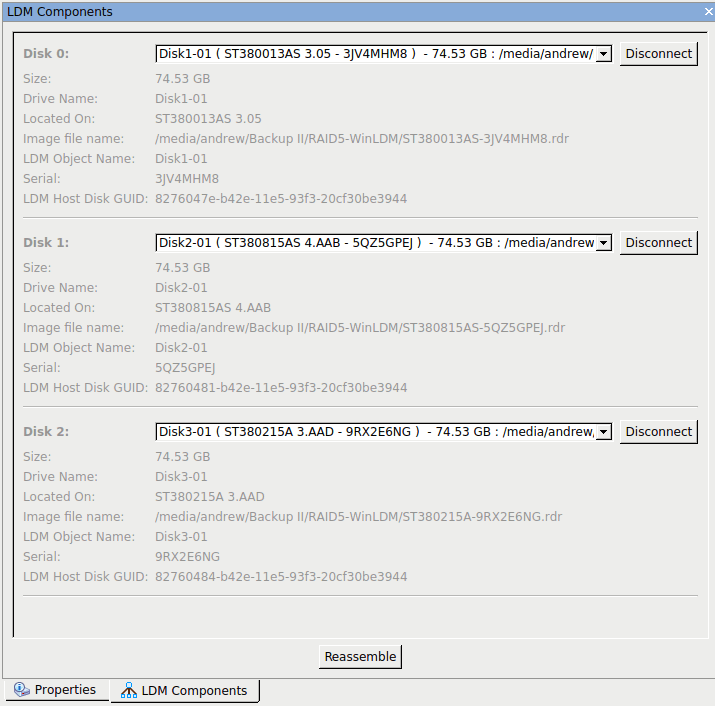

R-Studio shows the components of the selected dynamic disk on its LDM Components tab.

Click to enlarge

LDM Components tab

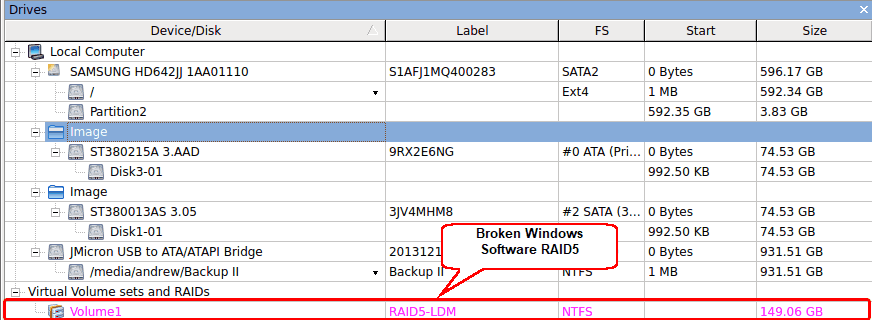

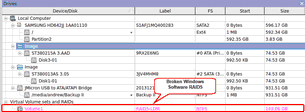

R-Studio shows broken dynamic disks in pink.

Click to enlarge

Broken dynamic disks in R-Studio

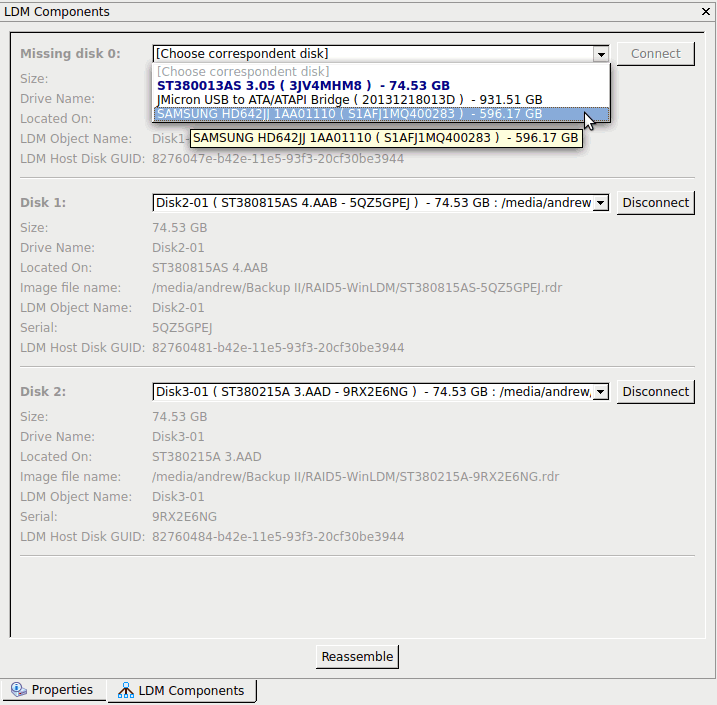

The LDM Components tab also allows you to manually disconnect or connect the components, for example, if they are such damaged that R-Studio cannot recognize them as parts of a broken dynamic disk. Select the object from the drop-down box and click the Connect button. R-Studio displays the objects it recognizes as the components of the dynamic disk in blue.

Click to enlarge

Add missing disk

You may immediately switch to the dynamic disk configuration that R-Studio believes most probable by clicking the Reassemble button.

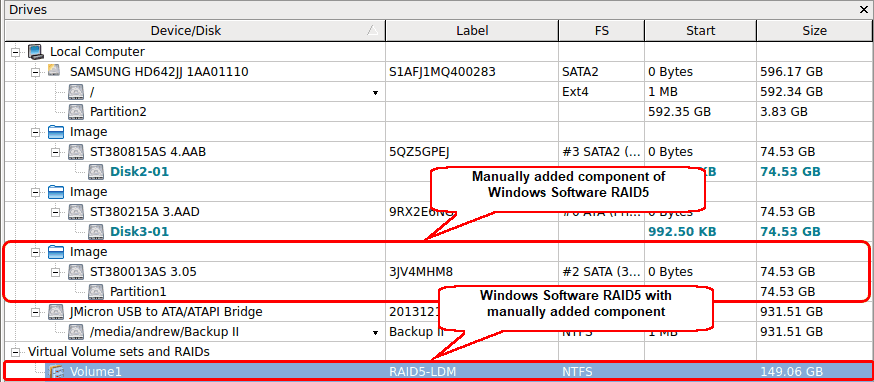

R-Studio shows dynamic disks with manually added components in blue:

Click to enlarge

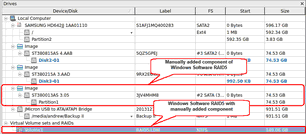

Dynamic disks with added components in R-Studio
