Disk Images


To create an image file

1 Select an object on the Device/Disk panel
2 Press the Alt+D key and select Create Plain Image File or Create Compressed Image File on the Drive menu
Click to enlarge/collapse

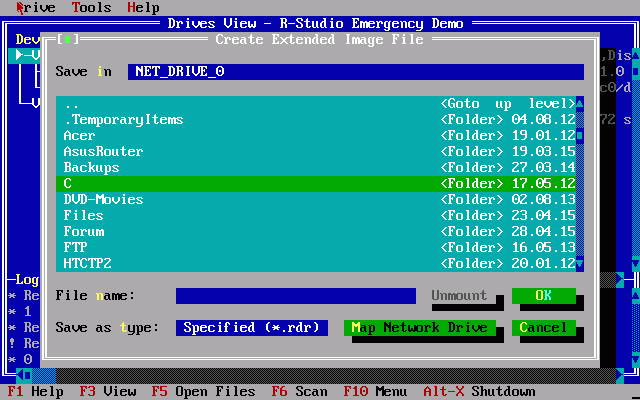

Create Image dialog box

Plain Image

If this option is selected, R-Studio will create a simple exact copy of the object. This image format is compatible with the previous versions of R-Studio .

Compressed Image

If this option is selected, R-Studio will create an image file compatible with the images created by R-Drive Image , but incompatible with the previous versions of R-Studio .

3 Specify the output folder and file name on the Create Image File dialog box

Mapping Network Drives

To load an image file

1 Press the Alt+D key and select Open Image File on the Drive menu
2 Specify the folder and file name with the image on the Open Image File dialog box

Mapping Network Drives
