DeepSpar RapidSpar™
RapidSpar is a specialized data recovery device from DeepSpar intended to extract data from problematic drives. Failing (source) and target drives are connected to the device, and it autonomously copies data from the source to the target in a way that maximizes the amount of successfully extracted data and minimizes possible damage to the source drive. The copy parameters can be quickly changed during this process directly on the device. Then the recovery software can read data from the target drive.
When connected to a PC, the specialized software (including R-Studio ) can read (and clone) only those drive areas that contain the necessary files and folders to decrease time required for data recovery.
In addition, it's possible to perform some repair works with hard drives.
You may read more about RapidSpar on its web site .
RapidSpar doesn't require any installed drivers.
Working with RapidSpar:
| 1 | Connect the source and target hard drives to RapidSpar and start the device. |
Refer to the RapidSpar manual for detailed instructions.
DeepSpar RapidSpar

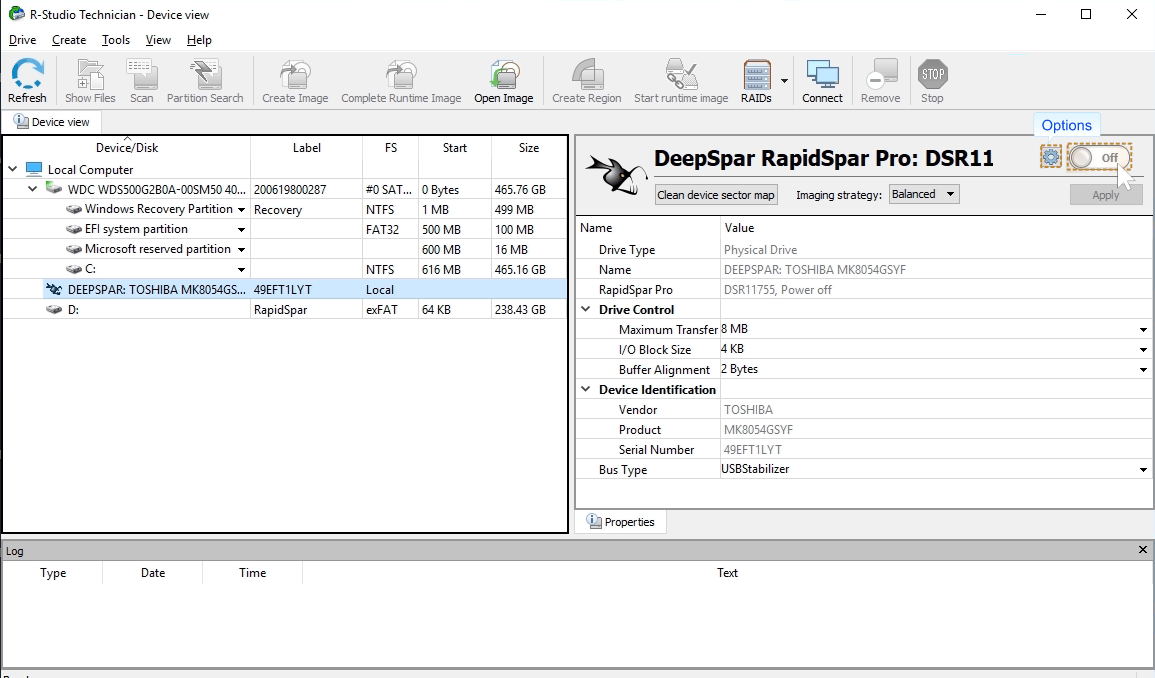

| > | R-Studio will show the RapidSpar drive. |
DeepSpar RapidSpar
Read the RapidSpar documentation for the information about its parameters.

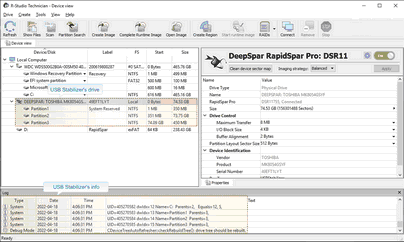

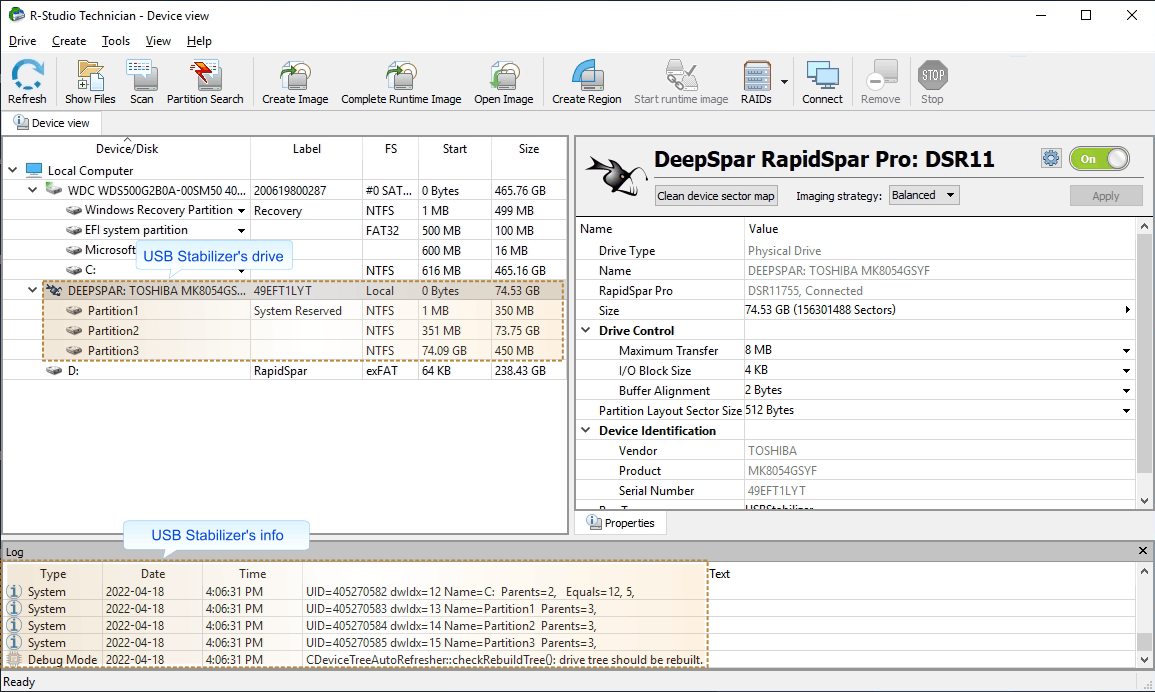

R-Studio can now process the RapidSpar drive as it's a common drive connected to a USB port.

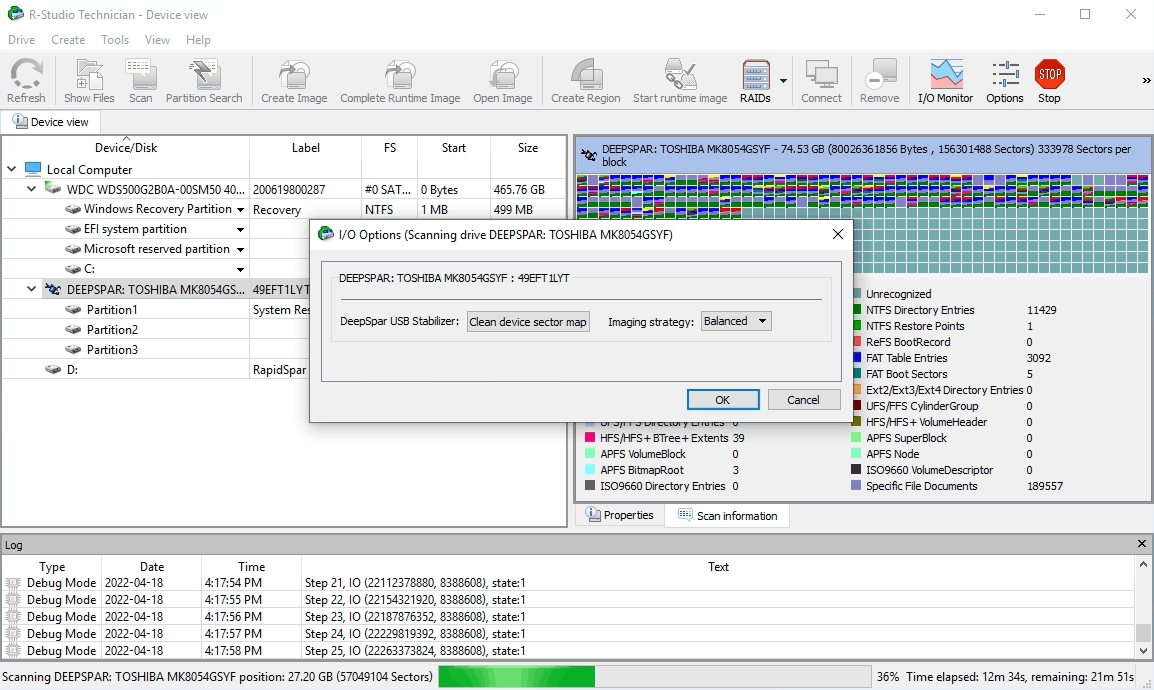

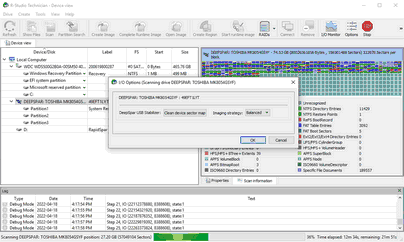

You may change these parameter during drive operations with RapidSpar .
DeepSpar RapidSpar

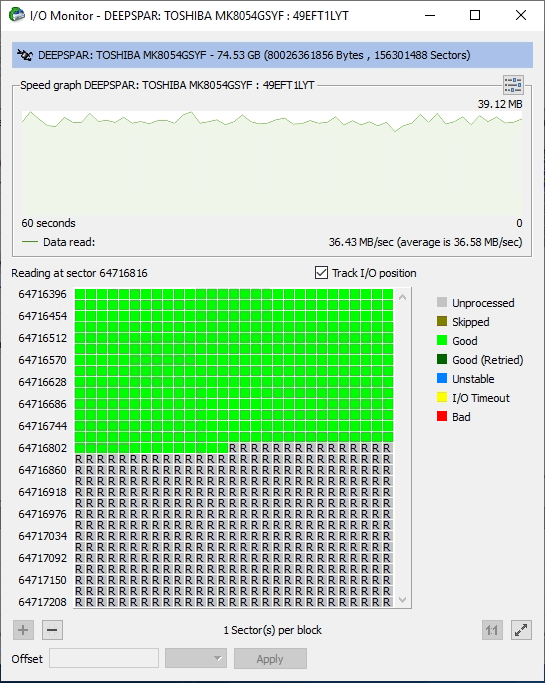

You may also watch drive read operations in real time at the I/O monitor.
.
DeepSpar RapidSpar
