Checking RAID Consistency

Checking RAID Consistency

Checking RAID Consistency

You may check RAID consistency (whether the data parity values are valid) for RAID layouts with parity blocks.

To check RAID consistency,

*Right-click the RAID and select Check RAID consistency... on the context menu
>The RAID consistency check window will appear showing the progress.
Click to enlarge

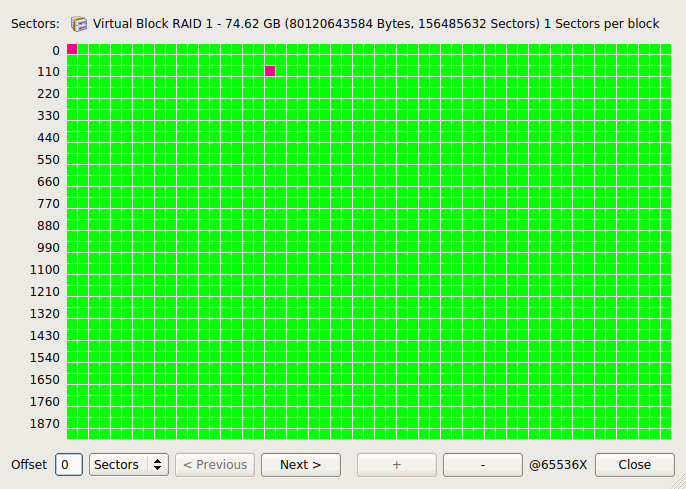

RAID consistency check window

When the check is finished, you may inspect the results.

Block color



Data parity values are valid.


Data parity values are not valid.



When a mouse pointer hovers over a block, a tooltip will show the sector range within the block and number of consistent and inconsistent sectors. Double-clicking the block moves it to the upper-leftmost corner and zooms in the data by 2.

Click to expand/collapse RAID consistency check controls
