OS X can create several software RAIDs from disks connected to a Mac computer: RAID1 (Mirror set), RAID0 (Stripe set), and Concatenated disk set.

Click to enlarge

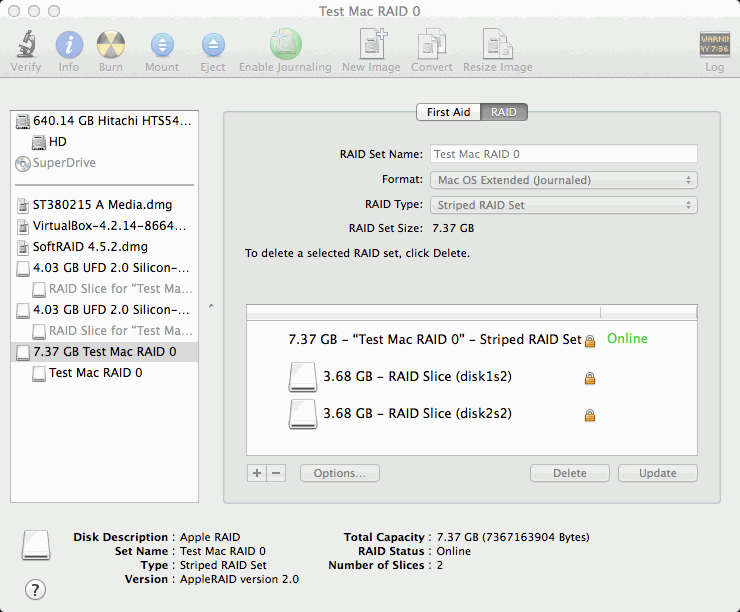

Apple RAID0 example

R-Studio automatically detects disks from Apple RAID sets and creates their virtual RAIDs automatically. At the same time, R-Studio gives access to the individual members of the Apple RAID sets (hard drives and images).

Click to enlarge

Apple RAIDs in R-Studio

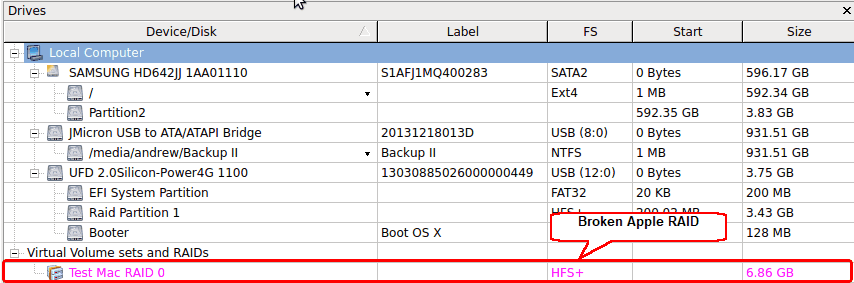

R-Studio shows broken Apple RAIDs in pink.

Click to enlarge

Broken Apple RAIDs in R-Studio

If recognized members of a Apple RAID are added to R-Studio (including disk images), R-Studio automatically adds them to their respective Apple RAIDs.

When Apple RAID members are such damaged that R-Studio cannot recognize them as members of broken Apple RAIDs, you may add them manually. Right-click the required Apple RAID, select Add missing disks on the context menu and select the required object(s) on the Add missing disks dialog box.

Click to enlarge

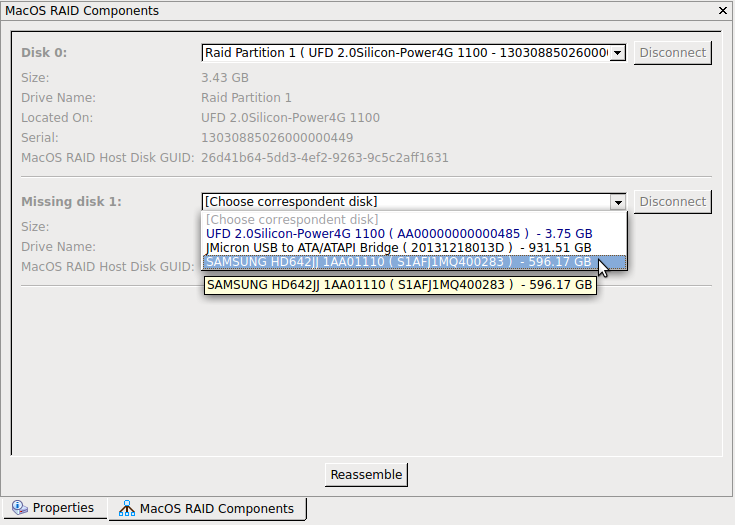

Add missing disks dialog box

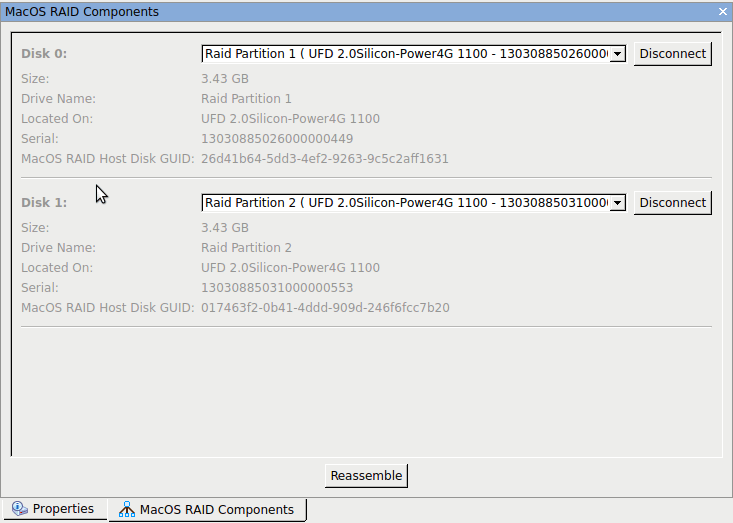

You should place the objects on their correct places.

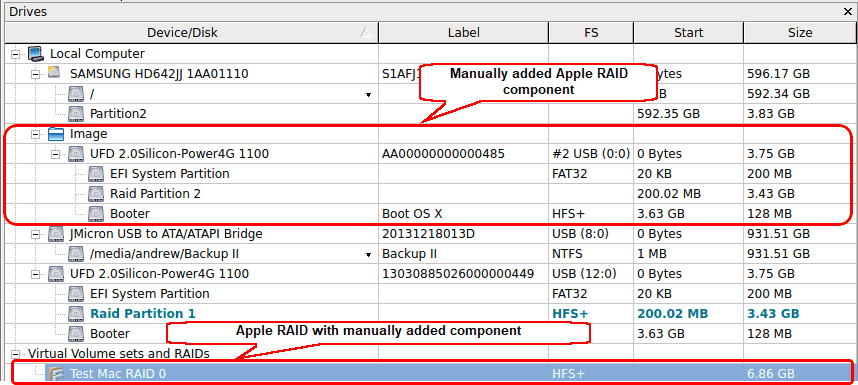

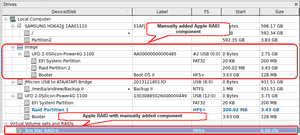

R-Studio shows such Apple RAIDs in blue:

Click to enlarge

Apple RAIDs with added members in R-Studio
