Network Drives

Top  Previous  Next

To map a network drive,

1On a dialog box with Map Network Drive, press the Alt+M key
>The Querying DHCP message will appear

If the network has a DHCP server, the computer will obtain an IP address automatically. A list of adapters and their IP addresses will appear on the Network Adapters dialog box.

If the network does not have a DHCP server, select a network adapter on the Network Adapters dialog box and press the F4 key. Enter the IP address and network mask and press the Enter button.

Click to enlarge/collapse

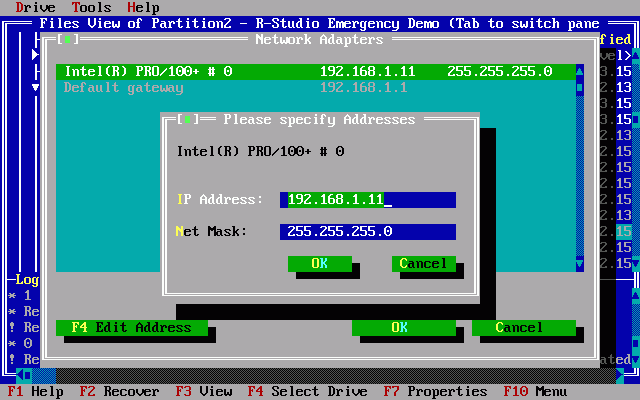

Network Addresses dialog box

2Select a configured network adapter and press the Enter key
3Enter the required information on the Map Network Drive message message
Click to enlarge/collapse

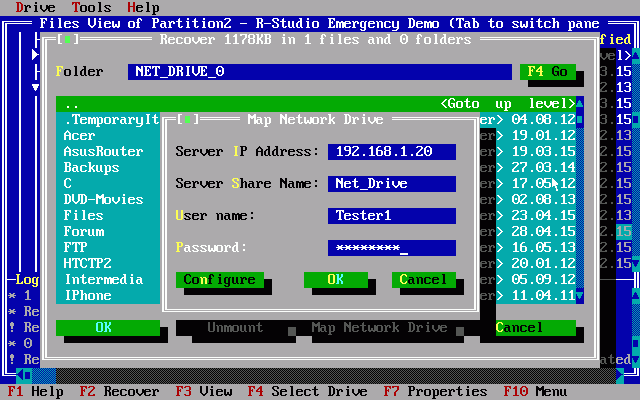

Map Network Drive dialog box

Server IP Address:

IP address of the computer where the network drive is to reside.

Server Share Name:

Name of the shared folder where the network drive is to reside.

Login:

Username of a user on the computer where the network drive is to reside.

Password:

User's password on the computer where the network drive is to reside.

For the network drive's path //SERVER/Net_Drive,

Server IP address: The IP address of the SERVER computer (192.168.1.20)

Server share name: Net_Drive.

>The mounted network disk will appear

To disconnect a mounted network drive

1Select a mounted network drive
2Switch to the Disconnect button and press the Enter key
